Axial Adjustment - End
Accuracy - 3μm or Less
Drilling - Through Coolant
Shank - Cylindrical Plain ≤h6
Shank - Cylindrical Weldon® ≤h6
Shank - Cylindrical Whistle Notch ≤h6
Shank: HSK DIN 69893 Form A
Balance - G 2.5@25,000 min-1Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 3866461 |
| ISO katalogové ID | HSK40AHPVTT10080M |
| ANSI katalogové ID | HSK40AHPVTT10080M |

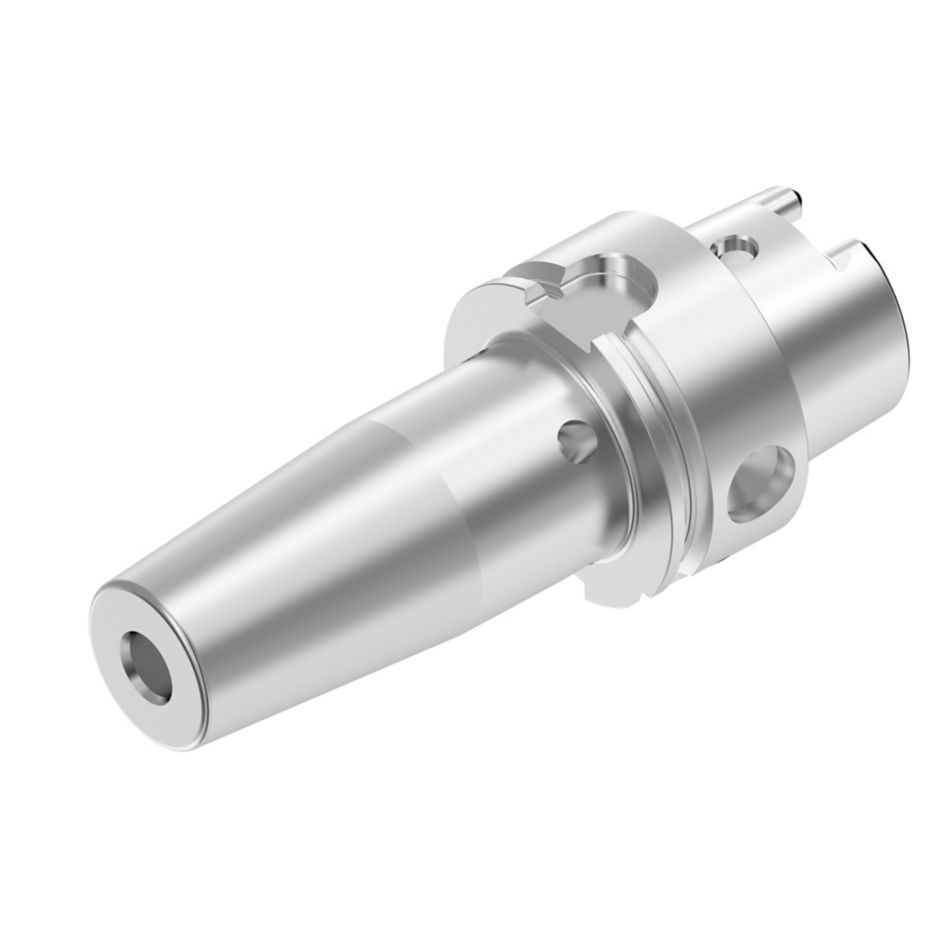

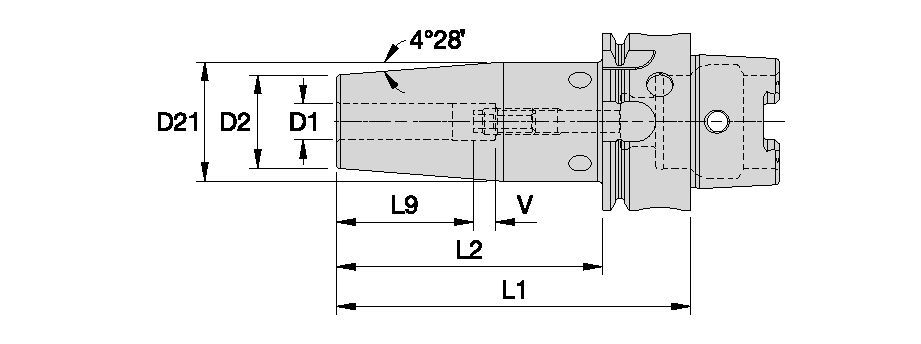

| [D1] Adapter / Shank / Bore Diameter | 10 mm |
| [D1] Adapter / Shank / Bore Diameter | .3937 in |
| [D2] Body Diameter 1 Workpiece Side | 24 mm |
| [D2] Body Diameter 1 Workpiece Side | .9449 in |
| [D21] Body Diameter 2 Workpiece Side | 31.9 mm |
| [D21] Body Diameter 2 Workpiece Side | 1.255 in |
| [L1] Gage Length | 80 mm |
| [L1] Gage Length | 3.149 in |
| [L2] Usable Length | 60.05 mm |
| [L2] Usable Length | 2.364 in |
| [L9] Clamping Length | 31 mm |
| [L9] Clamping Hole Length | 1.22 in |
| [V] Adjustment Range | 10 mm |
| [V] Adjustment Range | .3937 in |
| Stop Screw ID Drive Size | 4 mm |
| Weight Kilograms | 0.46 |
