| Objednací číslo | 5542609 |
| ISO katalogové ID | TCF050204BPV34 |
| ANSI katalogové ID | TCF050204BPV34 |
| Grade | WU40PH |

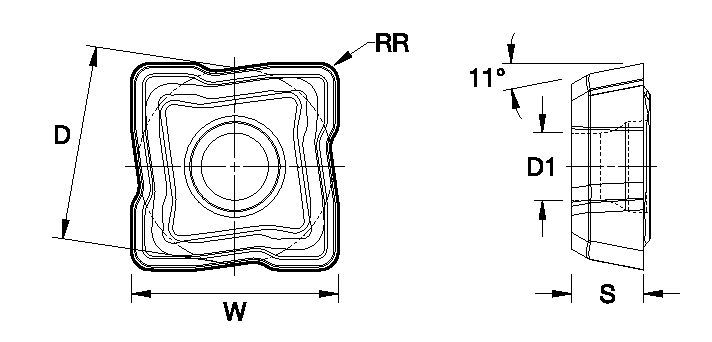

| [D] Insert IC Size | 5.07 mm |
| [D] Insert IC Size | .2 in |
| [D1] Insert Hole Size | 2.4 mm |
| [D1] Insert Hole Size | .094 in |
| [W] Cutting Width | 5.4 mm |
| [W] Cutting Width | .213 in |
| [S] Insert Thickness | 2.4 mm |
| [S] Insert Thickness | .094 in |
| [RR] Corner Radius | 0.4 mm |
| [RR] Corner Radius | .015 in |
| Insert Size | B |
Karbidy
WU40PH
Composition: With a multilayered PVD TiN-TiAlN coating and a tough substrate,
this grade withstands interruptions and provides high wear resistance for long tool life.
Application: First choice for high reliability in most materials. This grade should be
used at medium speeds and high feeds due to sharper edges and as a grade for high-
toughness applications. It covers steel, stainless steel, cast iron, and high-temp alloys
under certain conditions.
Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
| Materiálová skupina | Geometrie | Lehké obrábění | Všeobecné použití | Těžké obrábění | |||
| vnější VBD | středová VBD | vnější VBD | středová VBD | vnější VBD | středová VBD | ||
| P1 | V38/DU | WU25CH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| P2–P4 | V34/DU | WPK10CH | WU40PH/WU20PH | WU25CH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| P5–P6 | V36/DU | WU25CH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| M1–M3 | V36/DU | WU25CH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| K1–K3 | V34/DU | WPK10CH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| N1–N4 | V36 | WN10PH | WN10PH | WN10PH | WN10PH | WN10PH | WN10PH |
| S1–S4 | V38/DU | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH | WU40PH/WU20PH |
| Recommended Feed Rate per Revolution | |||||||||||
| Materiálová skupina | Geometrie | Sorta | Řezná rychlost | Průměr | 12,00 | 14,00 | 19,00 | 24,00 | |||
| středová | obvodová | Min | Start | Max | |||||||
| P0 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,06–0,08 | 0,08–0,11 | 0,10–0,13 | 0,11–0,14 |
| –DU | WU20PH | WU20PH | 90 | 150 | 200 | mm/rev | – | – | 0,07–0,10 | 0,08–0,10 | |
| P1 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,06–0,10 | 0,08–0,13 | 0,10–0,15 | 0,11–0,16 |
| –DU | WU20PH | WU20PH | 90 | 150 | 200 | mm/rev | – | – | 0,07–0,11 | 0,08–0,11 | |
| P2 | –V34 | WU40PH | WU25CH | 120 | 190 | 280 | mm/rev | 0,06–0,10 | 0,08–0,15 | 0,10–0,16 | 0,11–0,17 |
| –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0,07–0,12 | 0,08–0,13 | |
| P3 | –V34 | WU40PH | WPK10CH | 120 | 200 | 310 | mm/rev | 0,08–0,15 | 0,10–0,16 | 0,11–0,18 | 0,12–0,20 |
| –DU | WU20PH | WU20PH | 90 | 160 | 220 | mm/rev | – | – | 0,08–0,13 | 0,09–0,15 | |
| P4 | –V34 | WU40PH | WPK10CH | 120 | 190 | 310 | mm/rev | 0,08–0,15 | 0,10–0,16 | 0,11–0,18 | 0,12–0,20 |
| –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0,08–0,13 | 0,09–0,15 | |
| P5 | –V36 | WU40PH | WU25CH | 120 | 180 | 250 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0,07–0,11 | 0,08–0,12 | |
| P6 | -V36 | WU40PH | WU25CH | 120 | 160 | 210 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| –DU | WU20PH | WU20PH | 90 | 130 | 165 | mm/rev | – | – | 0,07–0,11 | 0,08–0,12 | |
| M1 | -V38 | WU40PH | WU40PH | 120 | 160 | 240 | mm/rev | 0,06–0,11 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| –DU | WU20PH | WU20PH | 90 | 130 | 190 | mm/rev | – | – | 0,06–0,09 | 0,07–0,10 | |
| M2 | –V38 | WU40PH | WU40PH | 110 | 140 | 210 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| –DU | WU20PH | WU20PH | 110 | 140 | 190 | mm/rev | – | – | 0,06–0,09 | 0,07–0,10 | |
| M3 | -V36 | WU40PH | WU40PH | 100 | 120 | 200 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| –DU | WU20PH | WU20PH | 80 | 100 | 160 | mm/rev | – | – | 0,06–0,09 | 0,07–0,10 | |
| K1 | -V34 | WU25CH | WPK10CH | 120 | 200 | 280 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| –DU | WU20PH | WU20PH | 90 | 160 | 220 | mm/rev | – | – | 0,07–0,13 | 0,09–0,18 | |
| K2 | –V34 | WU40PH | WPK10CH | 100 | 180 | 260 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| –DU | WU20PH | WU20PH | 80 | 140 | 200 | mm/rev | – | – | 0,07–0,13 | 0,09–0,18 | |
| K3 | -V34 | WU40PH | WPK10CH | 100 | 170 | 240 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| –DU | WU20PH | WU20PH | 80 | 140 | 190 | mm/rev | – | – | 0,07–0,13 | 0,09–0,18 | |
| N1 | -V36 | WN10PH | WN10PH | 250 | 350 | 500 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| N2 | –V36 | WN10PH | WN10PH | 150 | 300 | 450 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| N3 | -V36 | WN10PH | WN10PH | 80 | 120 | 150 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| S3 | -V38 | WU40PH | WU40PH | 20 | 30 | 45 | mm/rev | 0,08–0,12 | 0,08–0,13 | 0,10–0,15 | 0,12–0,19 |
| –DU | WU20PH | WU20PH | 20 | 30 | 40 | mm/rev | – | – | 0,07–0,11 | 0,09–0,14 | |
| S4 | –V38 | WU40PH | WU40PH | 35 | 40 | 65 | mm/rev | 0,08–0,12 | 0,08–0,13 | 0,10 –0,15 | 0,12–0,19 |
| –DU | WU20PH | WU20PH | 30 | 40 | 60 | mm/rev | – | – | 0,07–0,11 | 0,09–0,14 | |
| Materiálová skupina | Geometrie | Sorta | Řezná rychlost | Průměr | 30,00 | 37,00 | 46,00 | 57,00 | |||
| středová | obvodová | Min | Start | Max | |||||||
| P0 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,13–0,16 | 0,15–0,18 | 0,16–0,23 | 0,17–0,24 |
| –DU | WU20PH | WU20PH | 90 | 140 | 200 | mm/rev | 0,09–0,12 | 0,11–0,13 | – | – | |
| P1 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,13–0,17 | 0,15–0,19 | 0,16–0,24 | 0,17–0,25 |
| –DU | WU20PH | WU20PH | 90 | 140 | 200 | mm/rev | 0,09–0,13 | 0,11–0,14 | – | – | |
| P2 | –V34 | WU40PH | WU25CH | 120 | 190 | 280 | mm/rev | 0,13–0,20 | 0,15–0,21 | 0,16–0,28 | 0,17–0,30 |
| –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | 0,09–0,15 | 0,11–0,15 | – | – | |
| P3 | –V34 | WU40PH | WPK10CH | 120 | 200 | 310 | mm/rev | 0,16–0,24 | 0,16–0,24 | 0,18–0,30 | 0,19–0,32 |
| –DU | WU20PH | WU20PH | 90 | 160 | 250 | mm/rev | 0,12–0,16 | 0,12–0,18 | – | – | |
| P4 | –V34 | WU40PH | WPK10CH | 120 | 190 | 310 | mm/rev | 0,14–0,22 | 0,16–0,24 | 0,18–0,30 | 0,19–0,32 |
| –DU | WU20PH | WU20PH | 90 | 150 | 250 | mm/rev | 0,12–0,16 | 0,12–0,18 | – | – | |
| P5 | –V36 | WU40PH | WU25CH | 120 | 180 | 250 | mm/rev | 0,13–0,18 | 0,15–0,20 | 0,16–0,28 | 0,17–0,30 |
| –DU | WU20PH | WU20PH | 90 | 140 | 200 | mm/rev | 0,09–0,13 | 0,11–0,15 | – | – | |
| P6 | -V36 | WU40PH | WU25CH | 120 | 160 | 210 | mm/rev | 0,13–0,18 | 0,15–0,20 | 0,16–0,28 | 0,17–0,29 |
| –DU | WU20PH | WU20PH | 90 | 120 | 160 | mm/rev | 0,09–0,13 | 0,11–0,15 | – | – | |
| M1 | -V38 | WU40PH | WU40PH | 120 | 160 | 240 | mm/rev | 0,12–0,17 | 0,14–0,21 | 0,16–0,23 | 0,16–0,24 |
| –DU | WU20PH | WU20PH | 90 | 120 | 190 | mm/rev | 0,09–0,13 | 0,10–0,15 | – | – | |
| M2 | –V38 | WU40PH | WU40PH | 110 | 140 | 210 | mm/rev | 0,12–0,17 | 0,14–0,21 | 0,16–0,23 | 0,16–0,24 |
| –DU | WU20PH | WU20PH | 90 | 110 | 160 | mm/rev | 0,09–0,13 | 0,10–0,15 | – | – | |
| M3 | -V36 | WU40PH | WU40PH | 100 | 120 | 200 | mm/rev | 0,12–0,17 | 0,14–0,21 | 0,16–0,23 | 0,16–0,24 |
| –DU | WU20PH | WU20PH | 80 | 90 | 160 | mm/rev | 0,09–0,13 | 0,10–0,15 | – | – | |
| K1 | -V34 | WU25CH | WPK10CH | 120 | 200 | 280 | mm/rev | 0,14–0,26 | 0,16–0,30 | 0,18–0,32 | 0,20–0,36 |
| –DU | WU20PH | WU20PH | 90 | 160 | 220 | mm/rev | 0,10–0,19 | 0,12–0,22 | – | – | |
| K2 | –V34 | WU40PH | WPK10CH | 100 | 180 | 260 | mm/rev | 0,14–0,26 | 0,16–0,30 | 0,18–0,32 | 0,20–0,36 |
| –DU | WU20PH | WU20PH | 80 | 140 | 200 | mm/rev | 0,10–0,19 | 0,12–0,22 | – | – | |
| K3 | -V34 | WU40PH | WPK10CH | 100 | 170 | 240 | mm/rev | 0,14–0,26 | 0,16–0,30 | 0,18–0,32 | 0,20–0,36 |
| –DU | WU20PH | WU20PH | 80 | 130 | 190 | mm/rev | 0,10–0,19 | 0,12–0,22 | – | – | |
| N1 | -V36 | WN10PH | WN10PH | 250 | 350 | 500 | mm/rev | 0,13–0,18 | 0,15–0,20 | 0,16–0,28 | 0,17–0,30 |
| N2 | –V36 | WN10PH | WN10PH | 150 | 300 | 450 | mm/rev | 0,13–0,18 | 0,15–0,20 | 0,16–0,28 | 0,17–0,30 |
| N3 | -V36 | WN10PH | WN10PH | 80 | 120 | 150 | mm/rev | 0,12–0,17 | 0,14–0,21 | 0,16–0,23 | 0,16–0,24 |
| S3 | -V38 | WU40PH | WU40PH | 20 | 30 | 45 | mm/rev | 0,14–0,21 | 0,16–0,24 | 0,18–0,26 | 0,20–0,30 |
| –DU | WU20PH | WU20PH | 20 | 25 | 40 | mm/rev | 0,10–0,15 | 0,12–0,18 | – | – | |
| S4 | –V38 | WU40PH | WU40PH | 35 | 40 | 65 | mm/rev | 0,14–0,21 | 0,16–0,24 | 0,18–0,26 | 0,20–0,30 |
| –DU | WU20PH | WU20PH | 30 | 35 | 50 | mm/rev | 0,10–0,15 | 0,12–0,18 | – | – | |
| Avanzamento al giro consigliato | |||||||||||
| Sorta | Řezná rychlost | ||||||||||
| Materiálová skupina | Geometrie | středová | obvodová | Min | Start | Max | Průměr | 12,00 | 14,00 | 19,00 | 24,00 |
| P0 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,06–0,08 | 0,08–0,11 | 0,10–0,13 | 0,11–0,14 |
| P0 | –DU | WU20PH | WU20PH | 90 | 150 | 200 | mm/rev | – | – | 0.07–0.10 | 0.08–0.10 |
| P1 | –V38 | WU40PH | WU25CH | 120 | 180 | 260 | mm/rev | 0,06–0,10 | 0,08–0,13 | 0,10–0,15 | 0,11–0,16 |
| P1 | –DU | WU20PH | WU20PH | 90 | 150 | 200 | mm/rev | – | – | 0.07–0.11 | 0.08–0.11 |
| P2 | –V34 | WU40PH | WU25CH | 120 | 190 | 280 | mm/rev | 0,06–0,10 | 0,08–0,15 | 0,10–0,16 | 0,11–0,17 |
| P2 | –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0.07–0.12 | 0.08–0.13 |
| P3 | –V34 | WU40PH | WPK10CH | 120 | 200 | 310 | mm/rev | 0,08–0,15 | 0,10–0,16 | 0,11–0,18 | 0,12–0,20 |
| P3 | –DU | WU20PH | WU20PH | 90 | 160 | 220 | mm/rev | – | – | 0.08–0.13 | 0.09–0.15 |
| P4 | –V34 | WU40PH | WPK10CH | 120 | 190 | 310 | mm/rev | 0,08–0,15 | 0,10–0,16 | 0,11–0,18 | 0,12–0,20 |
| P4 | –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0.08–0.13 | 0.09–0.15 |
| P5 | –V36 | WU40PH | WU25CH | 120 | 180 | 250 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| P5 | –DU | WU20PH | WU20PH | 90 | 150 | 220 | mm/rev | – | – | 0.07–0.11 | 0.08–0.12 |
| P6 | -V36 | WU40PH | WU25CH | 120 | 160 | 210 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| P6 | –DU | WU20PH | WU20PH | 90 | 130 | 165 | mm/rev | – | – | 0.07–0.11 | 0.08–0.12 |
| M1 | -V38 | WU40PH | WU40PH | 120 | 160 | 240 | mm/rev | 0,06–0,11 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| M1 | –DU | WU20PH | WU20PH | 90 | 130 | 190 | mm/rev | – | – | 0.06–0.09 | 0.07–0.10 |
| M2 | –V38 | WU40PH | WU40PH | 110 | 140 | 210 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| M2 | –DU | WU20PH | WU20PH | 110 | 140 | 190 | mm/rev | – | – | 0.06–0.09 | 0.07–0.10 |
| M3 | -V36 | WU40PH | WU40PH | 100 | 120 | 200 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| M3 | –DU | WU20PH | WU20PH | 80 | 100 | 160 | mm/rev | – | – | 0.06–0.09 | 0.07–0.10 |
| K1 | -V34 | WU25CH | WPK10CH | 120 | 200 | 280 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| K1 | –DU | WU20PH | WU20PH | 90 | 160 | 220 | mm/rev | – | – | 0.07–0.13 | 0.09–0.18 |
| K2 | –V34 | WU40PH | WPK10CH | 100 | 180 | 260 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| K2 | –DU | WU20PH | WU20PH | 80 | 140 | 200 | mm/rev | – | – | 0.07–0.13 | 0.09–0.18 |
| K3 | -V34 | WU40PH | WPK10CH | 100 | 170 | 240 | mm/rev | 0,08–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,24 |
| K3 | –DU | WU20PH | WU20PH | 80 | 140 | 190 | mm/rev | – | – | 0.07–0.13 | 0.09–0.18 |
| N1 | -V36 | WN10PH | WN10PH | 250 | 350 | 500 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| N2 | –V36 | WN10PH | WN10PH | 150 | 300 | 450 | mm/rev | 0,06–0,10 | 0,08–0,14 | 0,10–0,15 | 0,11–0,16 |
| N3 | -V36 | WN10PH | WN10PH | 80 | 120 | 150 | mm/rev | 0,06–0,10 | 0,07–0,11 | 0,08–0,12 | 0,10–0,14 |
| S3 | -V38 | WU40PH | WU40PH | 20 | 30 | 45 | mm/rev | 0,08–0,12 | 0,08–0,13 | 0,10–0,15 | 0,12–0,19 |
| S3 | –DU | WU20PH | WU20PH | 20 | 30 | 40 | mm/rev | – | – | 0.07–0.11 | 0.09–0.14 |
| S4 | –V38 | WU40PH | WU40PH | 35 | 40 | 65 | mm/rev | 0,08–0,12 | 0,08–0,13 | 0,10 –0,15 | 0,12–0,19 |
| S4 | –DU | WU20PH | WU20PH | 30 | 40 | 60 | mm/rev | – | – | 0.07–0.11 | 0.09–0.14 |
| Velikost břitové destičky | Rozsah průměrů mm (palce) | 2 x D/3 x D | 4 x D | 5 x D | ||||||
| Max. velikost excentrického vyložení X v mm (max. v palcích) | Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | Max. velikost excentrického vyložení X v mm (max. v palcích) | Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | Max. velikost excentrického vyložení X v mm (max. v palcích) | Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | ||
| A | 12,00 | 0,5 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| B | 14,00 | 0,5 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| C | 19,00 | 0,5 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| D | 24,00 | 0,8 | D1 + 1,6mm | +/- 0,20 | 0,8 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| E | 30,00 | 0,8 | D1 + 1,6mm | +/- 0,20 | 0,8 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| F | 37,00 | 0,8 | D1 + 1,6mm | +/- 0,25 | 0,8 | D1 + 1mm | +/- 0,38 | +/- 0,38 | ||
| G | 46,00 | 1 | D1 + 2mm | +/- 0,25 | 0,8 | D1 + 1mm | +/- 0,38 | +/- 0,38 | ||
| H | 57,00 | 1 | D1 + 2mm | +/- 0,28 | 0,8 | D1 + 1mm | +/- 0,42 | +/- 0,42 | ||
| Velikost břitové destičky | Rozsah průměrů (mm) | 2 x D a 3 x D | 4 x D | 5 x D | |||
| Max. velikost X excentrického vyložení | Hodnota | Max. velikost X excentrického vyložení | Hodnota | Max. velikost X | Hodnota | ||
| A | 12,00 | 0,5 | D1 + 1mm | 0,5 | D1 + 1mm | ||
| B | 14,00 | 0,5 | D1 + 1mm | 0,5 | D1 + 1mm | ||
| C | 19,00 | 0,5 | D1 + 1mm | 0,5 | D1 + 1mm | ||
| D | 24,00 | 0,8 | D1 + 1,6mm | 0,8 | D1 + 1mm | ||
| E | 30,00 | 0,8 | D1 + 1,6mm | 0,8 | D1 + 1mm | ||
| F | 37,00 | 0,8 | D1 + 1,6mm | 0,8 | D1 + 1mm | ||
| G | 46,00 | 1 | D1 + 2mm | 0,8 | D1 + 1mm | ||
| H | 57,00 | 1 | D1 + 2mm | 0,8 | D1 + 1mm | ||
| Velikost břitové destičky | Rozsah průměrů mm (palce) | 2 x D/3 x D | 4 x D | 5 x D | |||||
| Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | Max. velikost excentrického vyložení X v mm (max. v palcích) | Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | Max. velikost excentrického vyložení X v mm (max. v palcích) | Hodnota D1 mm (palce) | Tolerance otvoru mm (palce) | ||
| A | 12,00 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| B | 14,00 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| C | 19,00 | D1 + 1mm | +/- 0,20 | 0,5 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| D | 24,00 | D1 + 1,6mm | +/- 0,20 | 0,8 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| E | 30,00 | D1 + 1,6mm | +/- 0,20 | 0,8 | D1 + 1mm | +/- 0,35 | +/- 0,35 | ||
| F | 37,00 | D1 + 1,6mm | +/- 0,25 | 0,8 | D1 + 1mm | +/- 0,38 | +/- 0,38 | ||
| G | 46,00 | D1 + 2mm | +/- 0,25 | 0,8 | D1 + 1mm | +/- 0,38 | +/- 0,38 | ||
| H | 57,00 | D1 + 2mm | +/- 0,28 | 0,8 | D1 + 1mm | +/- 0,42 | +/- 0,42 | ||
| Materiálová skupina | Geometrie | Sorta | Řezná rychlost | Průměr | 1.188 | 1.469 | 1.813 | 2.250 | |||
| středová | obvodová | Min | Start | Max | |||||||
| P0 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| P1 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| P2 | –V34 | WU40PH | WU25CH | 360 | 570 | 840 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| P3 | –V34 | WU40PH | WPK10CH | 360 | 600 | 930 | palce/ot. | 0.0053 | 0.0063 | 0.0071 | 0.0075 |
| P4 | –V34 | WU40PH | WPK10CH | 360 | 570 | 930 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0075 |
| P5 | –V36 | WU40PH | WU25CH | 360 | 540 | 750 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| P6 | -V36 | WU40PH | WU25CH | 360 | 480 | 630 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| M1 | -V38 | WU40PH | WU40PH | 360 | 480 | 720 | palce/ot. | 0.0047 | 0.0055 | 0.0063 | 0.0063 |
| M2 | –V38 | WU40PH | WU40PH | 330 | 420 | 630 | palce/ot. | 0.0047 | 0.0055 | 0.0063 | 0.0063 |
| M3 | -V36 | WU40PH | WU40PH | 300 | 360 | 600 | palce/ot. | 0.0047 | 0.0055 | 0.0063 | 0.0063 |
| K1 | -V34 | WU25CH | WPK10CH | 360 | 600 | 840 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0079 |
| K2 | –V34 | WU40PH | WPK10CH | 300 | 540 | 780 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0079 |
| K3 | -V34 | WU40PH | WPK10CH | 300 | 510 | 720 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0079 |
| N1 | -V36 | WN10PH | WN10PH | 750 | 1050 | 1500 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| N2 | –V36 | WN10PH | WN10PH | 450 | 900 | 1350 | palce/ot. | 0.0051 | 0.0059 | 0.0063 | 0.0067 |
| N3 | -V36 | WN10PH | WN10PH | 240 | 360 | 450 | palce/ot. | 0.0047 | 0.0055 | 0.0063 | 0.0063 |
| S3 | -V38 | WU40PH | WU40PH | 60 | 90 | 135 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0079 |
| S4 | –V38 | WU40PH | WU40PH | 105 | 120 | 195 | palce/ot. | 0.0055 | 0.0063 | 0.0071 | 0.0079 |
| Doporučený posuv na otáčku | |||||||||||
| Materiálová skupina | Geometrie | Sorta | Řezná rychlost | Průměr | .473 | .563 | .750 | .969 | |||
| středová | obvodová | Min | Start | Max | |||||||
| P0 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| P1 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| P2 | –V34 | WU40PH | WU25CH | 360 | 570 | 840 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| P3 | –V34 | WU40PH | WPK10CH | 360 | 600 | 930 | palce/ot. | 0.0031 | 0.0039 | 0.0043 | 0.0047 |
| P4 | –V34 | WU40PH | WPK10CH | 360 | 570 | 930 | palce/ot. | 0.0031 | 0.0039 | 0.0043 | 0.0047 |
| P5 | –V36 | WU40PH | WU25CH | 360 | 540 | 750 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| P6 | -V36 | WU40PH | WU25CH | 360 | 480 | 630 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| M1 | -V38 | WU40PH | WU40PH | 360 | 480 | 720 | palce/ot. | 0.0024 | 0.0028 | 0.0031 | 0.0039 |
| M2 | –V38 | WU40PH | WU40PH | 330 | 420 | 630 | palce/ot. | 0.0024 | 0.0028 | 0.0031 | 0.0039 |
| M3 | -V36 | WU40PH | WU40PH | 300 | 360 | 600 | palce/ot. | 0.0024 | 0.0028 | 0.0031 | 0.0039 |
| K1 | -V34 | WU25CH | WPK10CH | 360 | 600 | 840 | palce/ot. | 0.0031 | 0.0031 | 0.0039 | 0.0047 |
| K2 | –V34 | WU40PH | WPK10CH | 300 | 540 | 780 | palce/ot. | 0.0031 | 0.0031 | 0.0039 | 0.0047 |
| K3 | -V34 | WU40PH | WPK10CH | 300 | 510 | 720 | palce/ot. | 0.0031 | 0.0031 | 0.0039 | 0.0047 |
| N1 | -V36 | WN10PH | WN10PH | 750 | 1050 | 1500 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| N2 | –V36 | WN10PH | WN10PH | 450 | 900 | 1350 | palce/ot. | 0.0024 | 0.0031 | 0.0039 | 0.0043 |
| N3 | -V36 | WN10PH | WN10PH | 240 | 360 | 450 | palce/ot. | 0.0024 | 0.0028 | 0.0031 | 0.0039 |
| S3 | -V38 | WU40PH | WU40PH | 60 | 90 | 135 | palce/ot. | 0.0031 | 0.0031 | 0.0039 | 0.0047 |
| S4 | –V38 | WU40PH | WU40PH | 105 | 120 | 195 | palce/ot. | 0.0031 | 0.0031 | 0.0039 | 0.0047 |
| Recommended Feed Rate per Revolution | |||||||||||
| Materiálová skupina | Geometrie | Sorta | Řezná rychlost | Průměr | .473 | .563 | .750 | .969 | |||
| středová | obvodová | Min | Start | Max | |||||||
| P0 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | IPR | 0.0024–0.0031 | 0.0031–0.0043 | 0.0039–0.0051 | 0.0043–0.0055 |
| – DU | WU20PH | WU20PH | 290 | 430 | 625 | IPR | – | – | 0.0031–0.0041 | 0.0034–0.0044 | |
| P1 | –V38 | WU40PH | WU25CH | 360 | 540 | 780 | IPR | 0.0024–0.0039 | 0.0031–0.0051 | 0.0039–0.0059 | 0.0043–0.0063 |
| – DU | WU20PH | WU20PH | 290 | 430 | 625 | IPR | – | – | 0.0031–0.0047 | 0.0034–0.0050 | |
| P2 | –V34 | WU40PH | WU25CH | 360 | 570 | 840 | IPR | 0.0024–0.0039 | 0.0031–0.0059 | 0.0039–0.0063 | 0.0043–0.0067 |
| – DU | WU20PH | WU20PH | 290 | 450 | 675 | IPR | – | – | 0.0031–0.0050 | 0.0034–0.0054 | |
| P3 | –V34 | WU40PH | WPK10CH | 360 | 600 | 930 | IPR | 0.0031–0.0059 | 0.0039–0.0063 | 0.0043–0.0071 | 0.0047–0.0079 |
| – DU | WU20PH | WU20PH | 290 | 480 | 745 | IPR | – | – | 0.0034–0.0067 | 0.0037–0.0063 | |
| P4 | –V34 | WU40PH | WPK10CH | 360 | 570 | 930 | IPR | 0.0031–0.0059 | 0.0039–0.0063 | 0.0043–0.0071 | 0.0047–0.0079 |
| – DU | WU20PH | WU20PH | 290 | 450 | 745 | IPR | – | – | 0.0034–0.0067 | 0.0037–0.0063 | |
| P5 | –V36 | WU40PH | WU25CH | 360 | 540 | 750 | IPR | 0.0024–0.0039 | 0.0031–0.0055 | 0.0039–0.0059 | 0.0043–0.0063 |
| – DU | WU20PH | WU20PH | 290 | 430 | 600 | IPR | – | – | 0.0031–0.0047 | 0.0034–0.0050 | |
| P6 | -V36 | WU40PH | WU25CH | 360 | 480 | 630 | IPR | 0.0024–0.0039 | 0.0031–0.0055 | 0.0039–0.0059 | 0.0043–0.0063 |
| -V36 | WU40PH | WU25CH | 290 | 385 | 500 | IPR | - | - | 0.0031-0.0047 | 0.0034-0.0050 | |
| M1 | -V38 | WU40PH | WU40PH | 360 | 480 | 720 | IPR | 0.0024–0.0047 | 0.0028–0.0051 | 0.0031–0.0059 | 0.0039–0.0063 |
| - DU | WU20PH | WU20PH | 290 | 385 | 575 | IPR | - | - | 0.0025-0.0047 | 0.0031-0.0050 | |
| M2 | –V38 | WU40PH | WU40PH | 330 | 420 | 630 | IPR | 0.0024–0.0047 | 0.0028–0.0051 | 0.0031–0.0059 | 0.0039–0.0063 |
| – DU | WU20PH | WU20PH | 265 | 340 | 500 | IPR | – | – | 0.0025–0.0047 | 0.0031–0.0050 | |
| M3 | -V36 | WU40PH | WU40PH | 300 | 360 | 600 | IPR | 0.0024–0.0047 | 0.0028–0.0051 | 0.0031–0.0059 | 0.0039–0.0063 |
| - DU | WU20PH | WU20PH | 240 | 290 | 480 | IPR | - | - | 0.0025-0.0047 | 0.0031-0.0050 | |
| K1 | -V34 | WU25CH | WPK10CH | 360 | 600 | 840 | IPR | 0.0031–0.0055 | 0.0031–0.0063 | 0.0039–0.0071 | 0.0047–0.0094 |
| - DU | WU20PH | WU20PH | 290 | 480 | 675 | IPR | - | - | 0.0031-0.0057 | 0.0038-0.0075 | |
| K2 | –V34 | WU40PH | WPK10CH | 300 | 540 | 780 | IPR | 0.0031–0.0055 | 0.0031–0.0063 | 0.0039–0.0071 | 0.0047–0.0094 |
| – DU | WU20PH | WU20PH | 240 | 430 | 625 | IPR | – | – | 0.0031–0.0057 | 0.0038–0.0075 | |
| K3 | -V34 | WU40PH | WPK10CH | 300 | 510 | 720 | IPR | 0.0031–0.0055 | 0.0031–0.0063 | 0.0039–0.0071 | 0.0047–0.0094 |
| - DU | WU20PH | WU20PH | 240 | 400 | 575 | IPR | - | - | 0.0031-0.0057 | 0.0038-0.0075 | |
| N1 | -V36 | WN10PH | WN10PH | 750 | 1050 | 1500 | IPR | 0.0024–0.0039 | 0.0031–0.0055 | 0.0039–0.0059 | 0.0043–0.0063 |
| N2 | –V36 | WN10PH | WN10PH | 450 | 900 | 1350 | IPR | 0.0024–0.0039 | 0.0031–0.0055 | 0.0039–0.0059 | 0.0043–0.0063 |
| N3 | -V36 | WN10PH | WN10PH | 240 | 360 | 450 | IPR | 0.0024–0.0039 | 0.0028–0.0043 | 0.0031–0.0047 | 0.0039–0.0055 |
| S3 | -V38 | WU40PH | WU40PH | 60 | 90 | 135 | IPR | 0.0031–0.0047 | 0.0031–0.0051 | 0.0039–0.0059 | 0.0047–0.0075 |
| - DU | WU20PH | WU20PH | 50 | 70 | 100 | IPR | - | - | 0.0031-0.0047 | 0.0038-0.006 | |
| S4 | –V38 | WU40PH | WU40PH | 105 | 120 | 195 | IPR | 0.0031–0.0047 | 0.0031–0.0051 | 0.0039–0.0059 | 0.0047–0.0075 |
| – DU | WU20PH | WU20PH | 85 | 95 | 150 | IPR | – | – | 0.0031–0.0047 | 0.0038–0.006 | |
CAD Drawings Models
Can’t find the file type you’re looking for?
Product data
I have read and accepted the Terms & Conditions of use
Katalogové číslo ISO
Katalogové číslo ANSI
to find similar products.Please select a file to download
Models
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | Katalogové číslo ISO | Karbid |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
