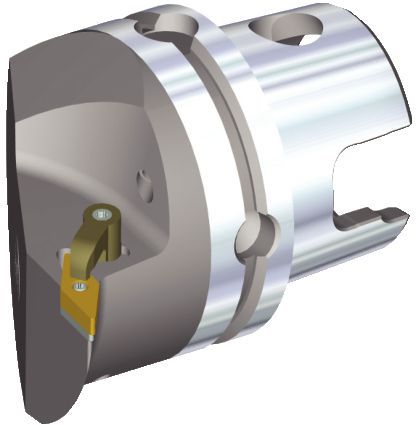

Shank - KM-ATC
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) MaximumDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1961335 |
| ISO katalogové ID | KM80ATCMVUNL16 |
| ANSI katalogové ID | KM80ATCMVUNL16 |
| [L1] Tool Length | 70 mm |
| [L1] Tool Length | 2.756 in |
| [F] F Dimension | 53 mm |
| [F] F Dimension | 2.086 in |
| [DM] Minimum Bore Diameter | 106 mm |
| [DM] Minimum Bore Diameter | 4.173 in |
| Gage Insert | VN..160408/VN..332 |
| Weight Kilograms | 2.23 |
| Weight Pounds | 4.92 |
Shank - KM-ATCCoolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) MaximumVytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
