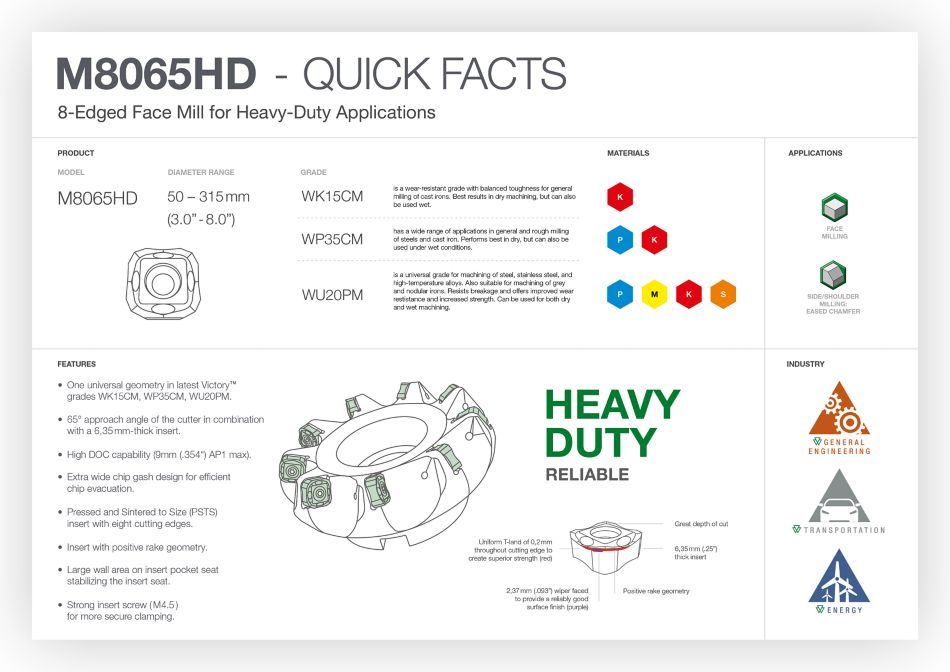

    Features and Benefits

    Use the M8065HD to easily confront heavy-duty milling jobs in steel and cast-iron materials by applying deep depths of cut while consistently maintaining high metal removal rates. M8065HD provides reliable cost savings to any machinist, starting at the price tag, ending on the spindle.

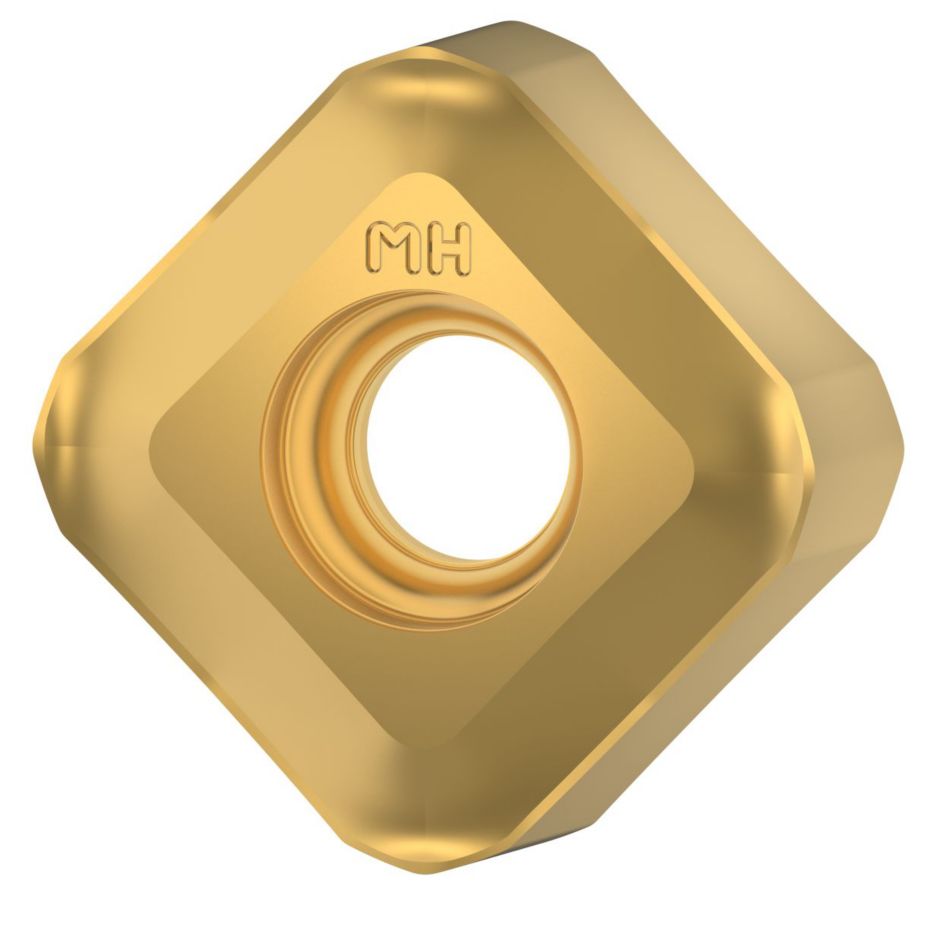

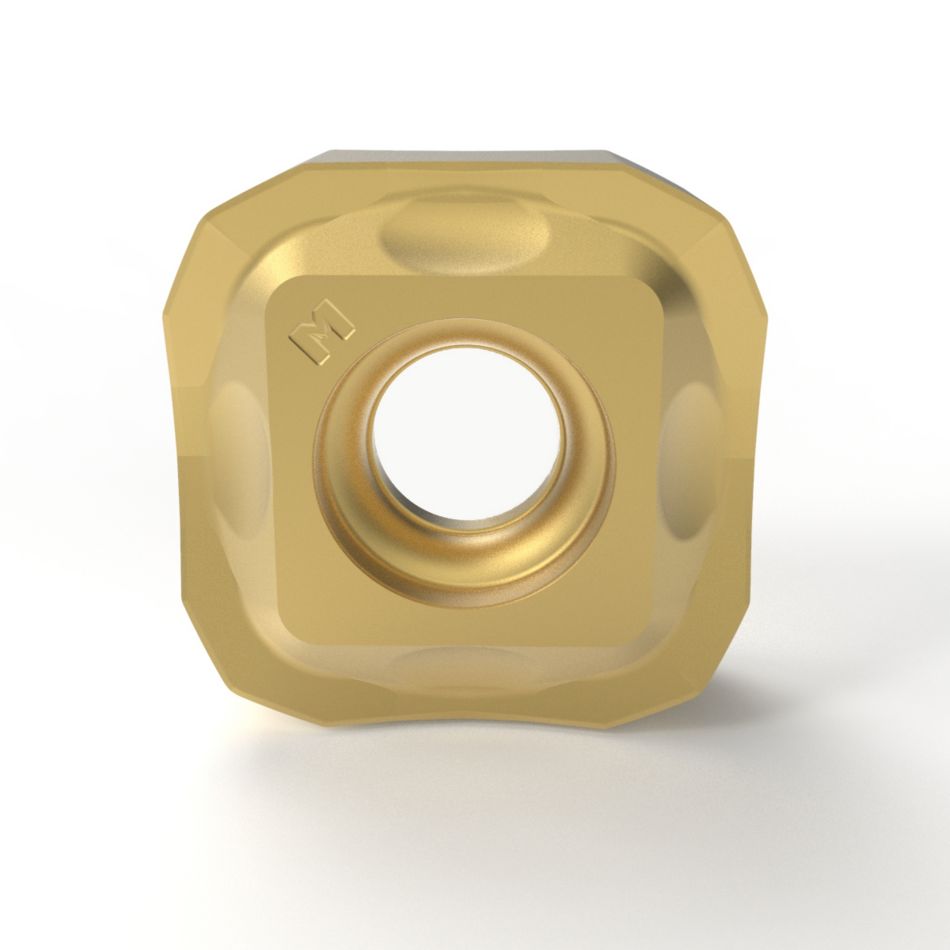

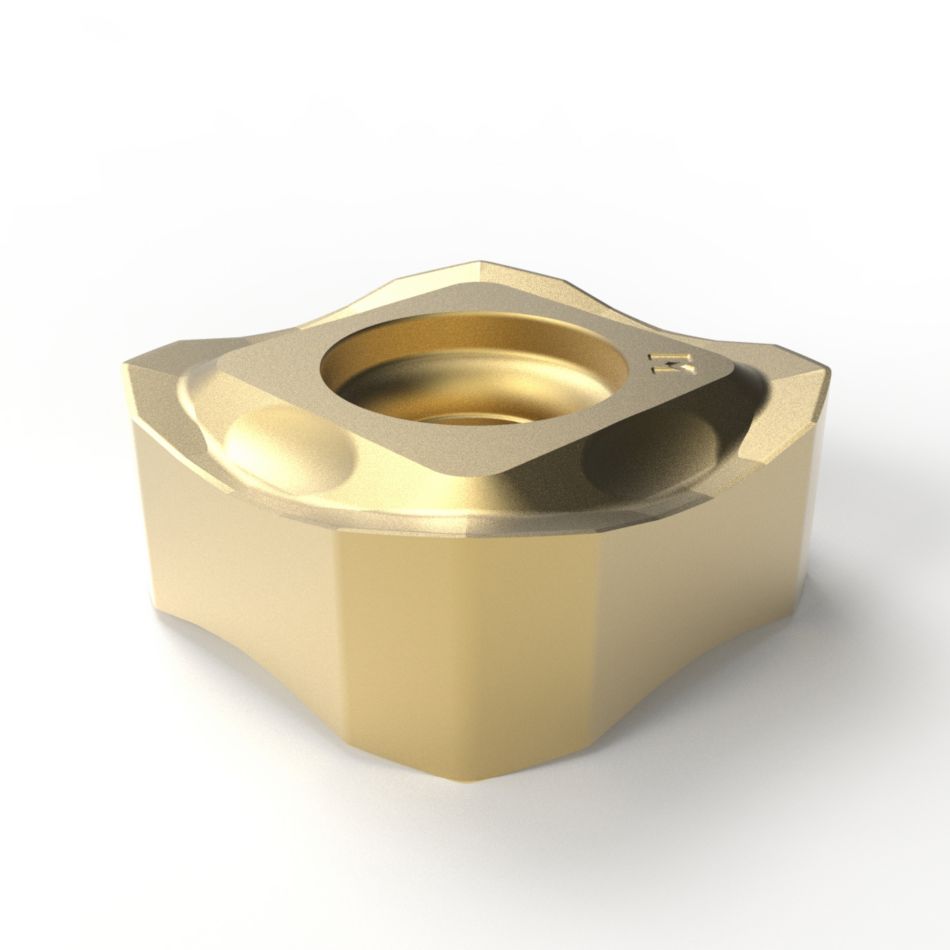

    • Universal SNMX15-MM geometry insert in grades WP35CM, WU20PM, WK15CM.
    • 65° approach angle of the cutter in combination with a 6.35mm thick insert.
    • High DOC capability (9mm Ap1 max).
    • Extra wide chip gash design for efficient chip evacuation.
    • Insert with positive rake geometry.
    • Large wall area on insert pocket seat stabilizing the insert seat.
    • Common insert for RH & LH cutter.
    • Strong insert screw (M4.5) for more secure clamping.



      One Geometry, Three Grades

      One universal geometry in the latest Victory™ grades WP35CM, WK15CM, and WU20PM. With less complexity, more materials can be machined. The proven Victory™ grades cover most target applications.

      Grade WK15CM - Ideal for Cast Iron
      A wear-resistant grade with balanced toughness for general milling in dry machining, but can also be used wet.

      Grade WP35CM - Ideal for Steel and Cast Iron
      This grade has a wide range of applications in general and rough milling. Performs best in dry, but can also be used under wet conditions.

      Grade WU20PM - Ideal for Steel, Stainless Steel, and High-Temperature Alloys, also siuitable for grey and nodular irons.
      A universal grade that resists breakage and offers improved wear resistance and increased strength. Can be used for both dry and wet machining.

      Select Filters
      Filters
      Filters
        View filters in
        Metric
        Inch
        Key Filters
        Workpiece Material
        Workpiece Material
        • P Steel (17)
          • P0
            Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(16)
          • P1
            Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(17)
          • P2
            Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS(17)
          • P3
            Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS(17)
          • P4
            Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS(17)
          • P5
            Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS(17)
          • P6
            High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS(17)
        • M Stainless Steel (17)
          • M1
            Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS(17)
          • M2
            High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS(17)
          • M3
            Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS(17)
        • K Cast Iron (18)
          • K1
            Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(18)
          • K2
            Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(18)
          • K3
            High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(18)
        • N Non-Ferrous Materials (15)
          • N1
            Wrought Aluminum (15)
          • N2
            Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(15)
          • N3
            High-Silicon Aluminum Alloys Si >12.2%(15)
        • S High-Temp Alloys (17)
          • S1
            Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS(15)
          • S2
            Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS(15)
          • S3
            Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS(15)
          • S4
            Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS(17)
        • H Hardened Materials (15)
          • H1
            Hardened Materials 44-48 HRC(15)
        Select All Star
        • CN (5)
        • DE (10)
        • IN (12)
        Applications
        Applications
        • Chamfer MillingChamfer Milling (14)
        • Face MillingFace Milling (14)
        Cutting Diameter
        Cutting Diameter
        • 1.969 in(1)
        • 2.48 in(1)
        • 3.0 in(1)
        • 3.15 in(1)
        • 3.938 in(1)
        • 4.0 in(1)
        • 4.921 in(1)
        • 5.0 in(1)
        • 6.0 in(1)
        • 6.299 in(1)
        • 7.875 in(1)
        • 8.0 in(1)
        • 9.843 in(1)
        • 12.403 in(1)
        Cutting Diameter MintoCutting Diameter Max
        Cutting Diameter
        Cutting Diameter
        • 50.0 mm(1)
        • 63.0 mm(1)
        • 76.2 mm(1)
        • 80.0 mm(1)
        • 100.0 mm(1)
        • 101.601 mm(1)
        • 125.0 mm(1)
        • 127.0 mm(1)
        • 152.4 mm(1)
        • 160.0 mm(1)
        • 200.0 mm(1)
        • 203.201 mm(1)
        • 250.0 mm(1)
        • 315.0 mm(1)
        Cutting Diameter MintoCutting Diameter Max
        Maximum Cutting Diameter
        Maximum Cutting Diameter
        • 58.875 mm(1)
        • 71.875 mm(1)
        • 85.025 mm(1)
        • 88.825 mm(1)
        • 108.825 mm(1)
        • 110.426 mm(1)
        • 133.85 mm(1)
        • 135.85 mm(1)
        • 161.25 mm(1)
        • 168.851 mm(1)
        • 208.851 mm(1)
        • 212.05 mm(1)
        • 258.85 mm(1)
        • 323.85 mm(1)
        Maximum Cutting Diameter MintoMaximum Cutting Diameter Max
        Maximum Cutting Diameter
        Maximum Cutting Diameter
        • 2.318 in(1)
        • 2.83 in(1)
        • 3.347 in(1)
        • 3.497 in(1)
        • 4.284 in(1)
        • 4.347 in(1)
        • 5.271 in(1)
        • 5.348 in(1)
        • 6.348 in(1)
        • 6.649 in(1)
        • 8.222 in(1)
        • 8.348 in(1)
        • 10.191 in(1)
        • 12.75 in(1)
        Maximum Cutting Diameter MintoMaximum Cutting Diameter Max
        Cutting Length
        Cutting Length
        • 9.0 mm(14)
        Cutting Length MintoCutting Length Max
        Cutting Length
        Cutting Length
        • 0.354 in(14)
        Cutting Length MintoCutting Length Max
        Reach
        Reach
        • 1.575 in(2)
        • 1.75 in(1)
        • 1.969 in(2)
        • 2.0 in(1)
        • 2.38 in(3)
        • 2.48 in(4)
        • 3.15 in(1)
        Reach MintoReach Max
        Reach
        Reach
        • 40.0 mm(2)
        • 44.45 mm(1)
        • 50.0 mm(2)
        • 50.801 mm(1)
        • 60.45 mm(3)
        • 63.0 mm(4)
        • 80.0 mm(1)
        Reach MintoReach Max
        Tool Cutting Edge Angle
        Tool Cutting Edge Angle
        • 64.0 (14)
        Tool Cutting Edge Angle MintoTool Cutting Edge Angle Max
        Connection Style
        Connection Style
        • A-Socket Head Cap Screw (4)
        • B-Cutter Retention Screw (5)
        • C-Bolt Circle (5)
        Number of Flutes
        Number of Flutes
        • 11 (2)
        • 14 (2)
        • 16 (1)
        • 20 (1)
        • 4 (1)
        • 5 (1)
        • 6 (2)
        • 7 (2)
        • 9 (2)
        Internal Coolant Capability
        Internal Coolant Capability
        Over All Length [L]
        Over All Length [L]
        • 1.575 in(2)
        • 1.75 in(1)
        • 1.969 in(2)
        • 2.0 in(1)
        • 2.38 in(3)
        • 2.48 in(4)
        • 3.15 in(1)
        Over All Length [L] MintoOver All Length [L] Max
        Over All Length [L]
        Over All Length [L]
        • 40.0 mm(2)
        • 44.45 mm(1)
        • 50.0 mm(2)
        • 50.801 mm(1)
        • 60.45 mm(3)
        • 63.0 mm(4)
        • 80.0 mm(1)
        Over All Length [L] MintoOver All Length [L] Max
        Application
        Grade Of Cutting Tool
        Grade Of Cutting Tool
        • WK15CM (15)
        • WP35CM (16)
        • WU20PM (15)
        Hand Of Tool
        Hand Of Tool
        • R (14)
        Wiper Insert
        Wiper Insert
        • N (1)
        • Y (3)
        Front-End
        Center Cutting
        Center Cutting
        Insert Geometry
        Shape
        Shape
        • S-SQUARE 90 (4)
        Insert IC Size
        Insert IC Size
        • 15.875 mm(4)
        Insert IC Size MintoInsert IC Size Max
        Insert IC Size
        Insert IC Size
        • 0.625 in(4)
        Insert IC Size MintoInsert IC Size Max
        Cutting Edge Length
        Cutting Edge Length
        • 15.875 mm(4)
        Cutting Edge Length MintoCutting Edge Length Max
        Cutting Edge Length
        Cutting Edge Length
        • 0.625 in(4)
        Cutting Edge Length MintoCutting Edge Length Max
        Chip Breaker CBMD
        Chip Breaker CBMD
        • MM (3)
        Cutting Tool Material
        Cutting Tool Material
        • H W (3)
        Tolerance Class
        Tolerance Class
        • M (4)
        Back-End
        Connection Type
        Connection Type
        • SHELL MILL (14)
        Back-End Diameter
        Back-End Diameter
        • 22.0 mm(2)
        • 25.401 mm(1)
        • 27.0 mm(1)
        • 31.75 mm(1)
        • 32.0 mm(1)
        • 38.1 mm(1)
        • 40.0 mm(2)
        • 50.801 mm(1)
        • 60.0 mm(3)
        • 63.5 mm(1)
        Back-End Diameter MintoBack-End Diameter Max
        Back-End Diameter
        Back-End Diameter
        • 0.866 in(2)
        • 1.0 in(1)
        • 1.063 in(1)
        • 1.25 in(1)
        • 1.26 in(1)
        • 1.5 in(1)
        • 1.575 in(2)
        • 2.0 in(1)
        • 2.362 in(3)
        • 2.5 in(1)
        Back-End Diameter MintoBack-End Diameter Max
        No filters matching ""
        M8065HD Series - Tool Bodies
        (14)

        M8065HD Series - Tool Bodies

        M8065HD Series - Inserts
        (4)

        M8065HD Series - Inserts
