| Material Nummer | 1977374 |
| ISO Katalog Nummer | M41396 |
| ANSI Katalog Nummer | M41396 |
| Identifikationsnummer | SF-42M |
| Aufnahmeart Maschinenseite | Straight-Cylindrical |

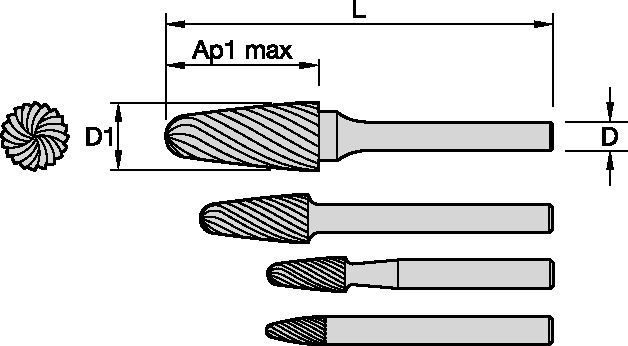

| [D1] Effektiver Schneidendurchmesser | 3 mm |
| [D1] Effektiver Schneidendurchmesser | 0.1181 in |
| [D] Adapter/Schaft/Bohrungsdurchmesser | 3 mm |
| [D] Adapter/Schaft/Bohrungsdurchmesser | 0.1181 in |
| [AP1MAX] 1. maximale Schnitttiefe | 12.7 mm |
| [AP1MAX] 1. maximale Schnitttiefe | 0.5 in |
| [L] Gesamtlänge | 38.1 mm |
| [L] Gesamtlänge | 1.5 in |
| Schaftausführung | A |
