    TOP DRILL M1™ • 8 x D • Flanged Shank • Metric

    TDM1 • 8 x D • Flanged Shank • Metric

    Material Number3992215

    ISO Catalog IDTDM100R8SCF16MANSI Catalog IDTDM100R8SCF16M

    TDM1 8xD Flanged Shk Metric Holemaking - 3992215 - WIDIA
    TDM1 8xD Flanged Shk Metric Holemaking - 3992215 - WIDIA
    TDM1 8xD Flanged Shk Metric Holemaking - 3992215 - WIDIA
    Open expanded view
    TDM1 8xD Flanged Shk Metric Holemaking - 3992215 - WIDIA
    TDM1 8xD Flanged Shk Metric Holemaking - 3992215 - WIDIA
    Generic representation
    List Price
    $306.72/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • K Cast Iron
    • DrillingDrilling
    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical with FlatShank - Cylindrical with Flat
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3992215
    Metric
    Inch
    Material Number3992215
    ISO Catalog IDTDM100R8SCF16M
    ANSI Catalog IDTDM100R8SCF16M
    GradeWG

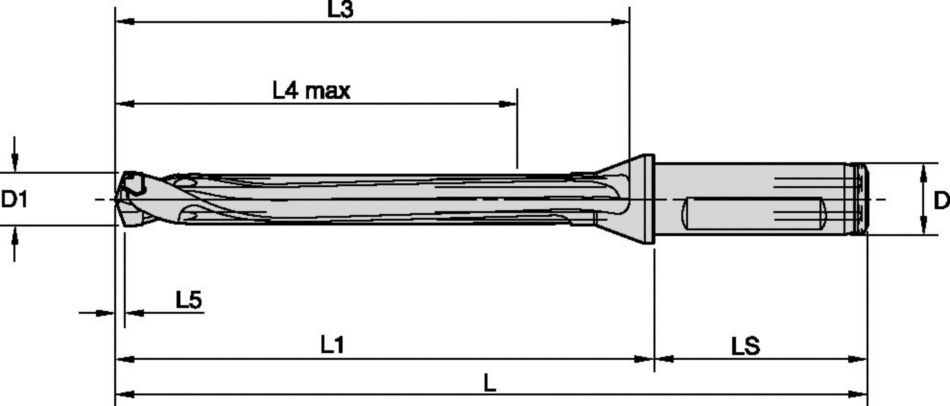

    [D1] Drill Diameter M 10 mm
    [D1] Drill Diameter M .3937 in
    [D1MAX] Drill Diameter Maximum10.49 mm
    [D1MAX] Drill Diameter Maximum.413 in
    [D] Adapter / Shank / Bore Diameter16 mm
    [D] Adapter / Shank / Bore Diameter.6299 in
    [L] Overall Length 151 mm
    [L] Overall Length 5.944 in
    [L1] Insert Gage Length 103 mm
    [L1] Insert Gage Length 4.055 in
    [L3] Flute Length 97.5 mm
    [L3] Flute Length 3.838 in
    [L4] Maximum Drilling Depth 84 mm
    [L4] Maximum Drilling Depth 3.307 in
    [L5] Drill Point Length1.8 mm
    [L5] Drill Point Length.0709 in
    [LS] Shank Length 48 mm
    [LS] Shank Length 1.889 in
    [SSC] Insert Seat SizeW14
    See all Product Variants

    Workpiece Materials

    • Steel
    • Cast Iron

    Uses and application

    • DrillingDrilling
    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical with FlatShank - Cylindrical with Flat

    Features and benefits

    • Tool body shipped with insert wrench

    Create Solution to calculate Feeds and Speeds
