Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Tool Dimensions: Flute Configuration: X (variable)
Corner Style: Corner Chamfer
Shank - Cylindrical Plain
Helix Angle: 45°Downloaded file will be available after import in the {{cadTool}} tool library.

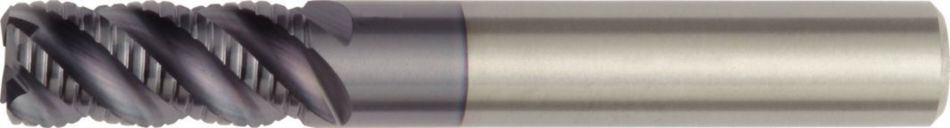

| Material Number | 1874979 |
| ISO Catalog ID | 497008003LW |
| ANSI Catalog ID | 497008003LW |
| Grade | TIALN-LW |
| Adapter Style Machine Side | Weldon |
| [D1] Effective Cutting Diameter | 8 mm |
| [D1] Effective Cutting Diameter | 0.315 in |
| [D] Adapter / Shank / Bore Diameter | 8 mm |
| [D] Adapter / Shank / Bore Diameter | 0.315 in |
| [AP1MAX] 1st Maximum Cutting Depth | 16 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.63 in |
| [L3] Usable Length | 16 mm |
| [L3] Usable Length | 0.63 in |
| [L] Overall Length | 63 mm |
| [L] Overall Length | 2.48 in |
| [BCH] Corner Chamfer Width | 0.6 mm |
| [BCH] Corner Chamfer Width | 0.0236 in |
| [Z] Number of Flutes | 6 |
Ramping: BlankSlotting: Square EndSide Milling/Shoulder Milling: Square EndTool Dimensions: Flute Configuration: X (variable)Corner Style: Corner ChamferShank - Cylindrical PlainHelix Angle: 45°Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
 |  |  | ||||||||||||||||
| TiCN | TiAlN | Recommended feed per tooth (fz = mm/th) for side milling (A). For slotting (B), reduce fz by 20%. | ||||||||||||||||
| A | B | Cutting Speed | Cutting Speed | D1 | ||||||||||||||
| m/min | m/min | |||||||||||||||||
| Material | ap | ae | ap | Min | Max | Min | Max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |||
| P | 3 | 1 x D | 0,5 x D | 0,5 x D | 96 | – | 128 | 120 | – | 160 | Fz | 0,031 | 0,043 | 0,051 | 0,063 | 0,078 | 0,101 | 0,114 |
| 4 | 1 x D | 0,3 x D | 0,4 x D | 72 | – | 120 | 90 | – | 150 | Fz | 0,028 | 0,038 | 0,046 | 0,056 | 0,069 | 0,088 | 0,098 | |
| 5 | 1 x D | 0,5 x D | 0,5 x D | 48 | – | 80 | 60 | – | 100 | Fz | 0,025 | 0,034 | 0,041 | 0,051 | 0,063 | 0,081 | 0,091 | |
| 6 | 1 x D | 0,3 x D | 0,4 x D | 40 | – | 60 | 50 | – | 75 | Fz | 0,021 | 0,029 | 0,034 | 0,042 | 0,051 | 0,065 | 0,071 | |
| M | 1 | 1 x D | 0,5 x D | 0,5 x D | 64 | – | 80 | 80 | – | 100 | Fz | 0,031 | 0,043 | 0,051 | 0,063 | 0,078 | 0,101 | 0,114 |
| 2 | 1 x D | 0,5 x D | 0,5 x D | 48 | – | 64 | 60 | – | 80 | Fz | 0,025 | 0,034 | 0,041 | 0,051 | 0,063 | 0,081 | 0,091 | |
| 3 | 1 x D | 0,5 x D | 0,5 x D | 48 | – | 64 | 60 | – | 80 | Fz | 0,021 | 0,029 | 0,034 | 0,042 | 0,051 | 0,065 | 0,071 | |
| K | 1 | 1 x D | 0,5 x D | 0,5 x D | 96 | – | 128 | 120 | – | 160 | Fz | 0,037 | 0,051 | 0,061 | 0,075 | 0,091 | 0,114 | 0,124 |
| 2 | 1 x D | 0,5 x D | 0,5 x D | 88 | – | 112 | 110 | – | 140 | Fz | 0,031 | 0,043 | 0,051 | 0,063 | 0,078 | 0,101 | 0,114 | |
| 3 | 1 x D | 0,5 x D | 0,5 x D | 80 | – | 104 | 100 | – | 130 | Fz | 0,025 | 0,034 | 0,041 | 0,051 | 0,063 | 0,081 | 0,091 | |
| S | 1 | 1 x D | 0,3 x D | 0,3 x D | 40 | – | 72 | 50 | – | 90 | Fz | 0,031 | 0,043 | 0,051 | 0,063 | 0,078 | 0,101 | 0,114 |
| 2 | 1 x D | 0,3 x D | 0,3 x D | 16 | – | 32 | 20 | – | 40 | Fz | 0,017 | 0,022 | 0,027 | 0,033 | 0,042 | 0,054 | 0,061 | |
| 3 | 1 x D | 0,4 x D | 0,4 x D | 40 | – | 64 | 50 | – | 80 | Fz | 0,025 | 0,034 | 0,041 | 0,051 | 0,063 | 0,081 | 0,091 | |
| 4 | 1 x D | 0,4 x D | 0,4 x D | 36 | – | 52 | 45 | – | 65 | Fz | 0,022 | 0,031 | 0,038 | 0,046 | 0,058 | 0,074 | 0,084 | |
| H | 1 | 1 x D | 0,3 x D | 0,3 x D | 64 | – | 112 | 80 | – | 140 | Fz | 0,028 | 0,038 | 0,046 | 0,056 | 0,069 | 0,088 | 0,098 |
| 2 | 1 x D | 0,2 x D | 0,2 x D | 56 | – | 96 | 70 | – | 120 | Fz | 0,021 | 0,029 | 0,034 | 0,042 | 0,051 | 0,065 | 0,071 | |
| 3 | 1 x D | 0,2 x D | 0,2 x D | 48 | – | 72 | 60 | – | 90 | Fz | 0,017 | 0,023 | 0,027 | 0,034 | 0,041 | 0,052 | 0,057 | |
