    HC HP Line • SIF100

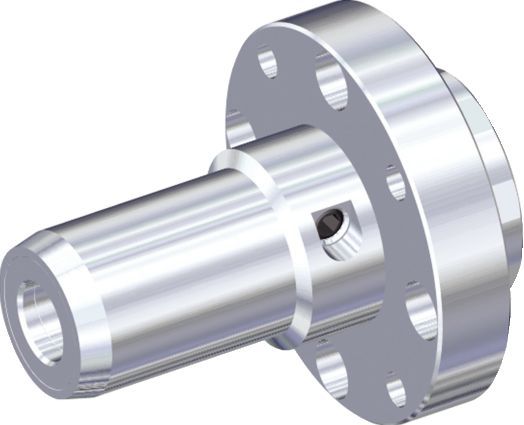

    SIF™ Steerable Toolholder

    Material Number3668023

    ISO Catalog IDSIF100HC25100MANSI Catalog IDSIF100HC25100M

    Precision Hole Finishing SIF Steerable Toolholder
    Precision Hole Finishing SIF Steerable Toolholder
    Precision Hole Finishing SIF Steerable Toolholder
    Open expanded view
    Precision Hole Finishing SIF Steerable Toolholder
    Precision Hole Finishing SIF Steerable Toolholder
    Generic representation
    List Price
    $1,455.52/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      This export format is not yet supported for this category.

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

      Drawings for 3668023
      Metric
      Inch
      Material Number3668023
      ISO Catalog IDSIF100HC25100M
      ANSI Catalog IDSIF100HC25100M
      [CSMS] System Size Machine SideSIF100
      [D1] Adapter / Shank / Bore Diameter25 mm
      [D1] Adapter / Shank / Bore Diameter0.984 in
      [D2] Body Diameter 1 Workpiece Side 49.75 mm
      [D2] Body Diameter 1 Workpiece Side 1.959 in
      [D21] Body Diameter 2 Workpiece Side62.85 mm
      [D21] Body Diameter 2 Workpiece Side2.474 in
      [L1] Gage Length100 mm
      [L1] Gage Length3.937 in
      [L2] Usable Length 51 mm
      [L2] Usable Length 2.008 in
      [L9] Clamping Length 47 mm
      [L9] Clamping Hole Length 1.85 in
      [V] Adjustment Range 10 mm
      [V] Adjustment Range 0.3937 in
      Weight Kilograms2.56
      Weight Pounds5.64
      See all Product Variants

      Features and benefits

      • SIF100 hydraulic chucks.
      • Suitable for SIF100 toolholder.
      • Runout <.0001" (0,003mm).
      • External side actuation adjustment stop, giving 3/8" (10mm) axial adjustment.

      Create Solution to calculate Feeds and Speeds

      After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

      I have read and accepted the Terms & Conditions of use

      CAD Drawings Models

      Can’t find the file type you’re looking for?

      Product data

      SDS

      Safety Data Sheets
      Create Solution to find the perfect compatible parts for your tool.

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      SIF-DV50 Form B/AD
      SIF-DV50 Form B/AD
      3738491
      DV50BSIF100060M
      DV50BSIF100060M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      SIF-BT50 Form B/AD
      SIF-BT50 Form B/AD
      3738504
      BT50BSIF100068M
      BT50BSIF100068M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      SIF-CV40 Form B/AD
      SIF-CV40 Form B/AD
      3738507
      CV50BSIF100236
      CV50BSIF100236
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      SIF-HSK80 Form A
      SIF-HSK80 Form A
      3738512
      HSK100ASIF100070M
      HSK100ASIF100070M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      Create Solution to find the perfect compatible parts for your tool.

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      DA Style 04-SS
      DA Style 04-SS
      1015011
      SS250DA104122M
      SS250DA104122M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      DA Style 04-SS
      DA Style 04-SS
      1015012
      SS250DA104186M
      SS250DA104186M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER™ Collet Adapter • Straight Shank • Metric
      ER™ Collet Adapter • Straight Shank • Metric
      1288321
      SS250ER20190M
      SS250ER20190M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      Roughers • Series 4906 • Chamfer • Metric
      Roughers • Series 4906 • Chamfer • Metric
      1657120
      490625008RT
      490625008RT
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      Vision Plus™ • Series 7505 7515 7525 7545 • Sharp Edge • Cylindrical Shank • Metric
      Vision Plus™ • Series 7505 7515 7525 7545 • Sharp Edge • Cylindrical Shank • Metric
      1747878
      751525008LT
      751525008LT
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      List 4777 • VariMill I™
      List 4777 • VariMill I™
      1920454
      477725008LT
      477725008LT
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      M25 • Cylindrical Shank SD0903 • Metric
      M25 • Cylindrical Shank SD0903 • Metric
      2022635
      12292550800
      12292550800
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      M270 Ball Nose • Cylindrical Shank • Metric
      M270 Ball Nose • Cylindrical Shank • Metric
      2243616
      M270BD025A25L195
      M270BD025A25L195
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      M680-09 • Cylindrical End Mills • XD09 • Metric
      M680-09 • Cylindrical End Mills • XD09 • Metric
      2582445
      M680D025Z03A25XD09L220
      M680D025Z03A25XD09L220
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      Hydraulic Sleeves • HC 12M - HC 32M • Metric with Metric Bores
      Hydraulic Sleeves • HC 12M - HC 32M • Metric with Metric Bores
      3026662
      25MHC030M
      25MHC030M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      WRENCH DIN 911 SW 4
      WRENCH DIN 911 SW 4
      1138315
      170.004
      170.004
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      SCREW DRIVER SW6
      SCREW DRIVER SW6
      1138755
      170.136
      170.136
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
