| Ürün Numarası | 5579271 |

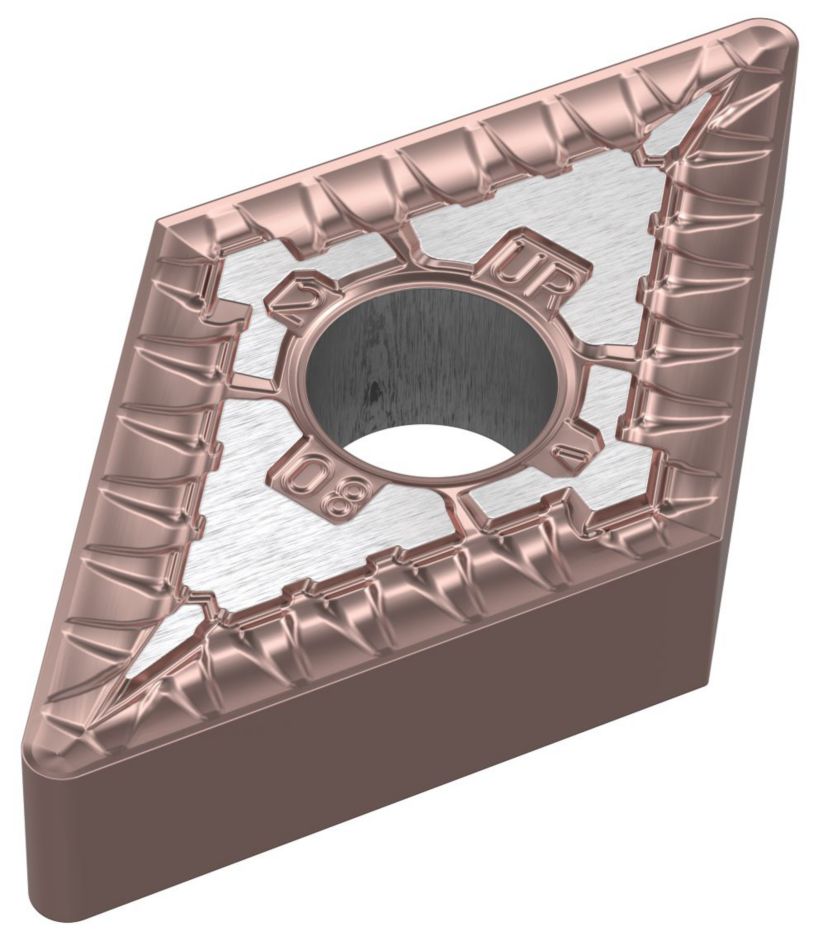

| ISO Katalog No | DNMG150408UR |
| ANSI Catalog No | DNMG432UR |
| Grade | WS25PT |
| [D] Insert IC Size | 12.7 mm |
| [D] Insert IC Size | 0.5 in |
| [L10] Insert Cutting Edge Length | 15.504 mm |
| [L10] Insert Cutting Edge Length | 0.6104 in |
| [S] Insert Thickness | 4.76 mm |
| [S] Insert Thickness | 0.1875 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| [D1] Insert Hole Size | 5.16 mm |
| [D1] Insert Hole Size | 0.2031 in |
Kaliteler
WS25PT
An advanced PVD grade with hard AlTiN coating and fine-grain unalloyed substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities. WS25PT™ is ideal for general machining of most steels, stainless steels, high-temp alloys, titanium, irons, and non-ferrous materials at moderate speeds and over a wide range of feeds, with improved edge toughness for interrupted cut and high feed rates.
