VariMill™ • 4XC0 • 4-Flute Ball Nose • Inch

Name: VariMill™ • 4XC0 • 4-Flute Ball Nose • Inch
SKU: 100075161
Rating: 0 (0 reviews)

VariMill Ball Nose • 4XC0 • Asymmetrical Flute Spacing

Właściwości i zalety

Asymmetrical flute spacing minimizes chatter and harmonics for smoother machining.

Center cutting.

Single tool for both roughing and finishing operations requiring fewer setups.

Standard items listed. Additional styles and coatings made-to-order.

Zastosowania

Side Milling/Shoulder Milling: Ball Nose
Corner Style: Ball Nose
Helix Angle: 38°

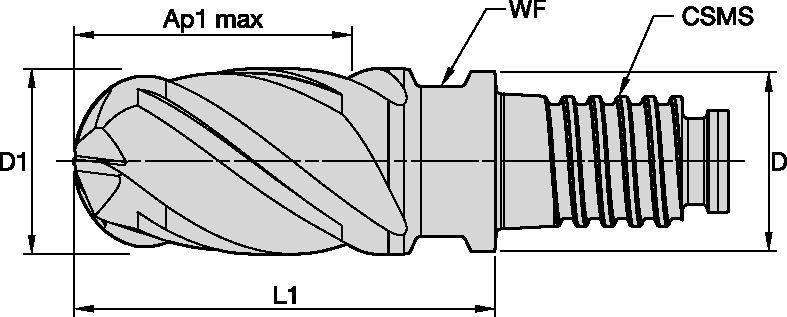

Tool Dimensions: Flute Configuration: 4
Slotting: Ball Nose
3D Profiling

Kompatybilne części
Parametry skrawania

VariMill Ball Nose • 4XC0 • Asymmetrical Flute Spacing


		Side Milling (A) and Slotting (B)			short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	adapter reach										D1 Diameter
					WP15PE			WP15PE			WP15PE
					Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1	1 1/4
Material Group		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.0000	1.2500
P	0	1.25 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	1	1.25 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	2	1.25 x D	0.5 x D	1 x D	460	–	620	414	–	558	414	–	558	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	3	1.25 x D	0.5 x D	1 x D	390	–	520	351	–	468	351	–	468	IPT	.0019	.0025	.0029	.0033	.0038	.0041
	4	1.25 x D	0.5 x D	0.75 x D	300	–	490	270	–	441	270	–	441	IPT	.0017	.0022	.0026	.0029	.0033	.0034
	5	1.25 x D	0.5 x D	1 x D	200	–	330	170	–	281	160	–	264	IPT	.0016	.0020	.0023	.0026	.0031	.0033
	6	1.25 x D	0.5 x D	0.75 x D	160	–	250	136	–	213	128	–	200	IPT	.0013	.0016	.0019	.0021	.0024	.0024
M	1	1.25 x D	0.5 x D	1 x D	300	–	380	240	–	304	210	–	266	IPT	.0019	.0025	.0029	.0033	.0038	.0041
	2	1.25 x D	0.5 x D	1 x D	200	–	260	160	–	208	140	–	182	IPT	.0016	.0020	.0023	.0026	.0031	.0033
	3	1.25 x D	0.5 x D	1 x D	200	–	230	160	–	184	140	–	161	IPT	.0013	.0016	.0019	.0021	.0024	.0024
K	1	1.25 x D	0.5 x D	1 x D	390	–	490	351	–	441	351	–	441	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	2	1.25 x D	0.5 x D	1 x D	360	–	460	324	–	414	324	–	414	IPT	.0019	.0025	.0029	.0033	.0038	.0041
	3	1.25 x D	0.5 x D	1 x D	360	–	430	324	–	387	324	–	387	IPT	.0016	.0020	.0023	.0026	.0031	.0033
S	1	1 x D	0.3 x D	0.3 x D	160	–	300	128	–	240	96	–	180	IPT	.0019	.0025	.0029	.0033	.0038	.0041
	2	1 x D	0.3 x D	0.3 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0021	.0022
	3	1.25 x D	0.5 x D	1 x D	200	–	260	160	–	208	120	–	156	IPT	.0016	.0020	.0023	.0026	.0031	.0033
	4	1.25 x D	0.5 x D	1 x D	160	–	200	128	–	160	96	–	120	IPT	.0014	.0018	.0021	.0024	.0028	.0030
H	1	1.25 x D	0.5 x D	0.75 x D	260	–	460	208	–	368	156	–	276	IPT	.0017	.0022	.0026	.0029	.0033	.0034
	2	1.25 x D	0.2 x D	0.5 x D	230	–	390	184	–	312	138	–	234	IPT	.0013	.0016	.0019	.0021	.0024	.0024
