    Finishers • Series 4S05 4S07 • Sharp Edge • Inch

    Series 4S05 4S07 • Lists 4S05 4S07 4S17 4S27 4S47 4S67

    Material Number1952550

    ISO Catalog IDTR4S4710004ANSI Catalog IDTR4S4710004

    4S05/4S07/4S17/4S27/4S47/4S67 Solid End Milling - 1952550 - WIDIA
    4S05/4S07/4S17/4S27/4S47/4S67 Solid End Milling - 1952550 - WIDIA
    4S05/4S07/4S17/4S27/4S47/4S67 Solid End Milling - 1952550 - WIDIA
    Open expanded view
    4S05/4S07/4S17/4S27/4S47/4S67 Solid End Milling - 1952550 - WIDIA
    4S05/4S07/4S17/4S27/4S47/4S67 Solid End Milling - 1952550 - WIDIA
    Generic representation
    List Price
    $71.75/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Ramping: BlankRamping: Blank
    • Corner Style: Square EndCorner Style: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Helix Angle: 45°Helix Angle: 45°
    • Tool Dimensions: Flute Configuration: X (variable)Tool Dimensions: Flute Configuration: X (variable)
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

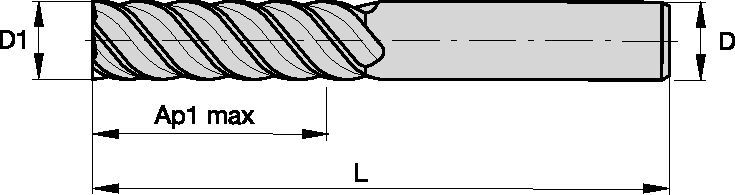

    Drawings for 1952550
    Metric
    Inch
    Material Number1952550
    ISO Catalog IDTR4S4710004
    ANSI Catalog IDTR4S4710004
    GradeTIALN
    Adapter Style Machine SideStraight-Cylindrical
    [L3] Usable Length12.7 mm
    [L3] Usable Length.5 in
    [Z] Number of Flutes6
    [D1] Effective Cutting Diameter9.525 mm
    [D1] Effective Cutting Diameter.375 in
    [D] Adapter / Shank / Bore Diameter9.525 mm
    [D] Adapter / Shank / Bore Diameter.375 in
    [AP1MAX] 1st Maximum Cutting Depth12.7 mm
    [AP1MAX] 1st Maximum Cutting Depth.5 in
    [L] Overall Length 50.8 mm
    [L] Overall Length 2 in
    See all Product Variants
