    ETA • Straight End Mount

    Single Square Shank Adapters • M-Clamping

    Material Number2203618

    ISO Catalog IDKM80ATCETAR20ANSI Catalog IDKM80ATCETAR20

    ETAR/L-KM-ATC Inch Tooling Systems - 2203618 - WIDIA
    ETAR/L-KM-ATC Inch Tooling Systems - 2203618 - WIDIA
    ETAR/L-KM-ATC Inch Tooling Systems - 2203618 - WIDIA
    Open expanded view
    ETAR/L-KM-ATC Inch Tooling Systems - 2203618 - WIDIA
    ETAR/L-KM-ATC Inch Tooling Systems - 2203618 - WIDIA
    Generic representation
    List Price
    $1,346.93/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Shank - KM-ATCShank - KM-ATC
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2203618
    Metric
    Inch
    Material Number2203618
    ISO Catalog IDKM80ATCETAR20
    ANSI Catalog IDKM80ATCETAR20

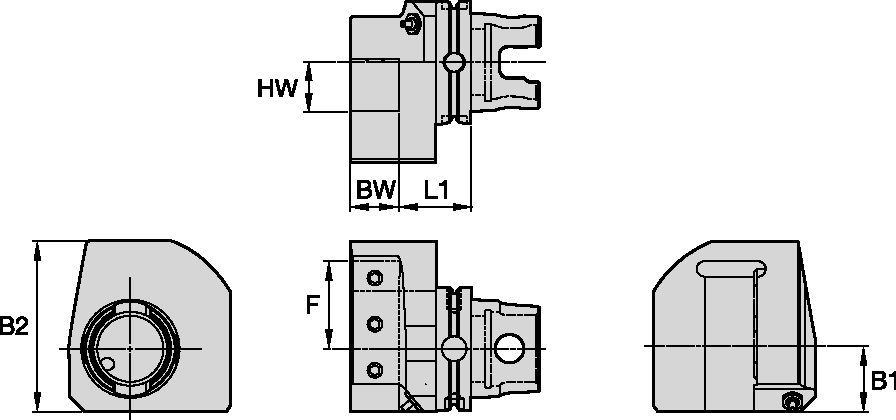

    [L1] Gage Length46.9 mm
    [L1] Gage Length1.846 in
    [LPR] Protruding Length 78.65 mm
    [LPR] Protruding Length 3.096 in
    [F] F Dimension -57 mm
    [F] F Dimension -2.244 in
    [HW] Shank Height 31.75 mm
    [HW] Shank Height 1.25 in
    [BW] Shank Width 31.75 mm
    [BW] Shank Width 1.25 in
    [B2] Overall Width 111 mm
    [B2] Overall Width 4.37 in
    Torque Foot Pounds40
    Weight Pounds10.32
