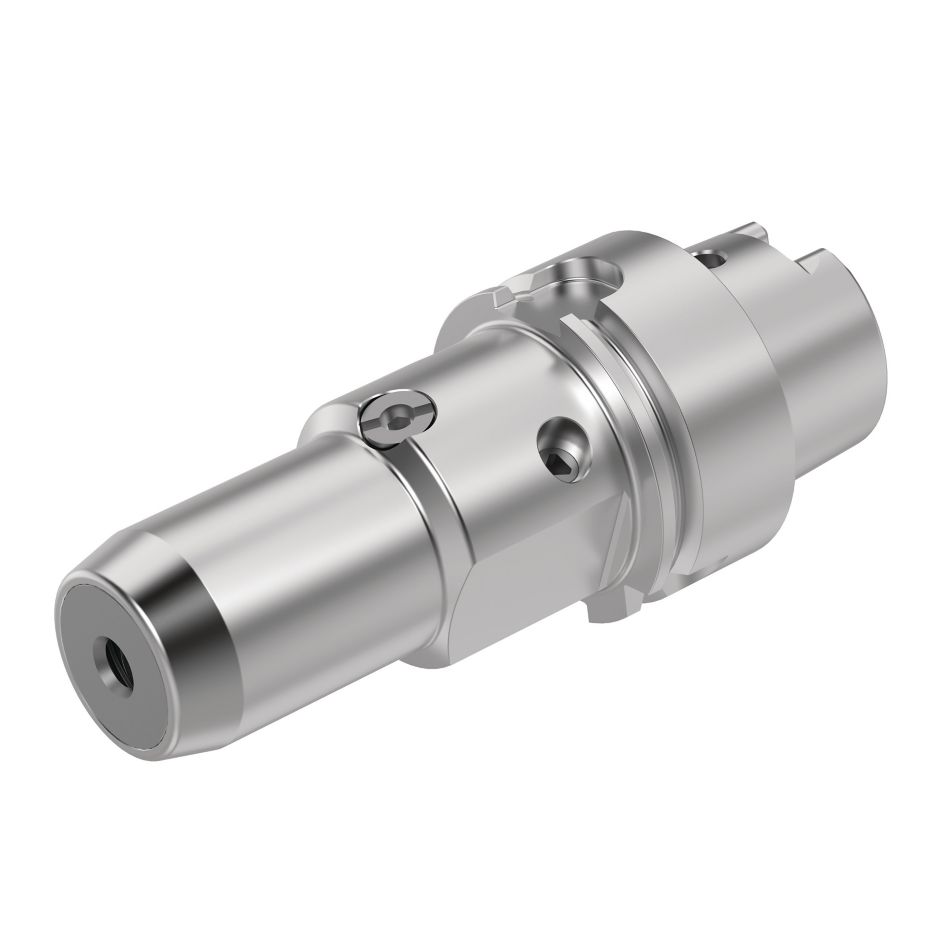

    HC-HSK Form A

    Hydraulic Chucks Standard HP Line

    Material Number1245492

    ISO Catalog IDHSK100AHC32120MANSI Catalog IDHSK100AHC32120M

    Hydraulic Chucks High-Performance Line • HSK A
    Hydraulic Chucks High-Performance Line • HSK A
    Hydraulic Chucks High-Performance Line • HSK A
    Open expanded view
    Hydraulic Chucks High-Performance Line • HSK A
    Hydraulic Chucks High-Performance Line • HSK A
    Generic representation
    List Price
    $996.44/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Axial Adjustment - SideAxial Adjustment - Side
    • Accuracy - 3μm or LessAccuracy - 3μm or Less
    • Shank - Cylindrical Plain ≤h6Shank - Cylindrical Plain ≤h6
    • Shank: HSK DIN 69893 Form AShank: HSK DIN 69893 Form A
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Balance - G 2.5@25,000 min-1Balance - G 2.5@25,000 min-1
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 1245492
    Metric
    Inch
    Material Number1245492
    ISO Catalog IDHSK100AHC32120M
    ANSI Catalog IDHSK100AHC32120M
    [CSMS] System Size Machine SideHSK100A
    [D1] Adapter / Shank / Bore Diameter32 mm
    [D1] Adapter / Shank / Bore Diameter1.26 in
    [D2] Body Diameter 1 Workpiece Side 59.75 mm
    [D2] Body Diameter 1 Workpiece Side 2.352 in
    [D21] Body Diameter 2 Workpiece Side62.85 mm
    [D21] Body Diameter 2 Workpiece Side2.474 in
    [L1] Gage Length120 mm
    [L1] Gage Length4.724 in
    [L2] Usable Length 59 mm
    [L2] Usable Length 2.323 in
    [L9] Clamping Length 51 mm
    [L9] Clamping Hole Length 2.008 in
    [V] Adjustment Range 10 mm
    [V] Adjustment Range .3937 in
    Actuation Screw ID Drive Size6 mm
    Stop Screw ID Drive Size4 mm
    Weight Kilograms3.55
