Surfaçage
Rainurage : Bout plat
Fraisage de côté/avec épaulement : Bout plat
Fraisage — Arrosage interne
Fraisage — 3 tailles
Usinage de pochesDownloaded file will be available after import in the {{cadTool}} tool library.

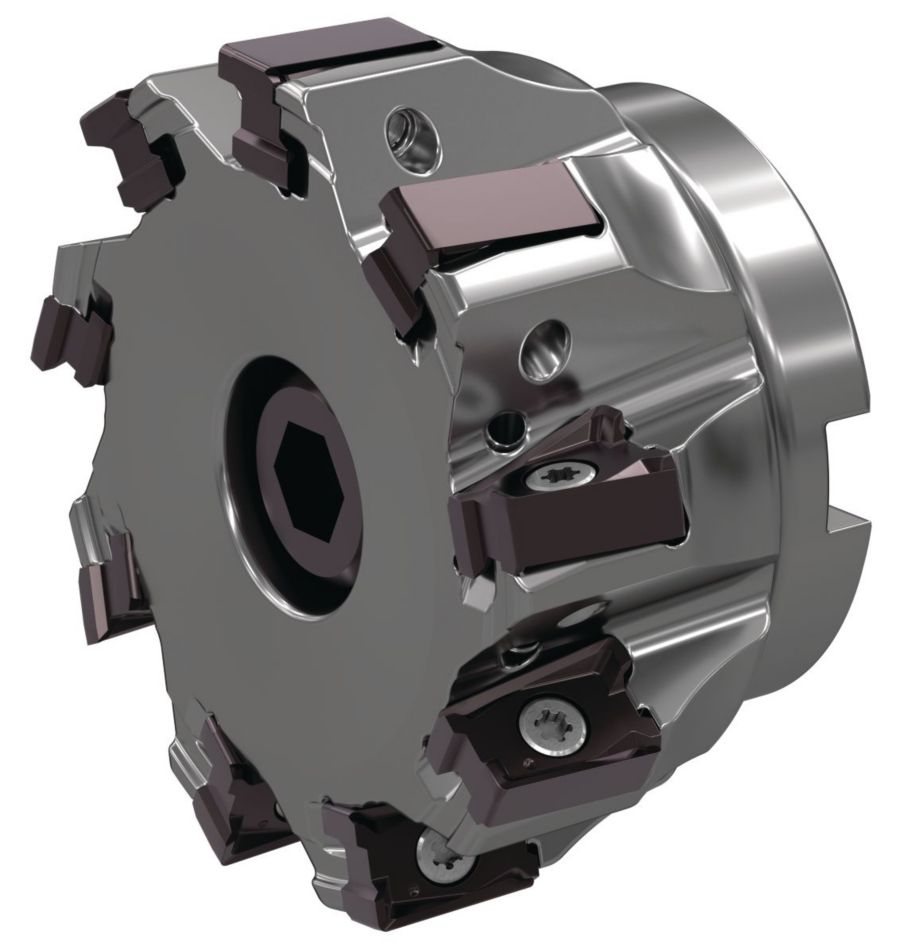

| Numéro de matériel | 5873109 |
| Ref. ISO Catalogue | VSM490D600Z10S200XN15 |
| Ref. ANSI Catalogue | VSM490D600Z10S200XN15 |
| [D1] Diamètre effectif de coupe | 152.4 mm |
| [D1] Diamètre effectif de coupe | 6 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 50.8 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 2 in |
| [D6] Diamètre du moyeu | 123.825 mm |
| [D6] Diamètre du moyeu | 4.875 in |
| [L] Longueur totale | 60.45 mm |
| [L] Longueur totale | 2.38 in |
| [AP1MAX] 1re profondeur de coupe maximale | 15 mm |
| [AP1MAX] 1re profondeur de coupe maximale | .591 in |
| Nombre de plaquettes | 10 |
| T/Min max | 8600 |
| Alimentation en arrosage | Y |
| Poids Livres | 10.45 |
SurfaçageRainurage : Bout platFraisage de côté/avec épaulement : Bout platFraisage — Arrosage interneFraisage — 3 taillesUsinage de pochesCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P3–P4 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P5–P6 | XNGU-MM | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP40PM |
| M1–M2 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| M3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| K1–K2 | XNPU-MM | WK15PM | XNGU-MH | WK15CM | XNGU-MH | WK15CM |
| K3 | XNPU-MM | WK15PM | XNGU-MH | WP35CM | XNGU-MH | WP35CM |
| N1–N2 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| N3 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| S1–S2 | XNGU-ML | WP25PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S4 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| H1 | – | – | – | – | – | – |
| Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | ||||||||||||||||
| Insert Geometry | 5% | 10% | 20% | 30% | 40–100% | Insert Geometry | ||||||||||
| .E..ALP | 0,11 | 0,23 | 0,35 | 0,08 | 0,17 | 0,25 | 0,06 | 0,13 | 0,19 | 0,05 | 0,11 | 0,16 | 0,05 | 0,10 | 0,15 | .E..ALP |
| .E..ML | 0,17 | 0,31 | 0,46 | 0,13 | 0,23 | 0,33 | 0,09 | 0,17 | 0,25 | 0,08 | 0,15 | 0,22 | 0,08 | 0,14 | 0,20 | .E..ML |
| .S..MM | 0,22 | 0,40 | 0,64 | 0,16 | 0,29 | 0,46 | 0,12 | 0,22 | 0,34 | 0,10 | 0,19 | 0,30 | 0,10 | 0,18 | 0,28 | .S..MM |
| .S..MH | 0,23 | 0,45 | 0,74 | 0,17 | 0,33 | 0,54 | 0,13 | 0,24 | 0,40 | 0,11 | 0,21 | 0,35 | 0,10 | 0,20 | 0,32 | .S..MH |
| Light | General | Heavy |
| Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | ||||||||||||||||
| Insert Geometry | 5% | 10% | 20% | 30% | 40–100% | Insert Geometry | ||||||||||
| .E..ALP | .005 | .008 | .012 | .003 | .006 | .009 | .002 | .004 | .007 | .002 | .004 | .006 | .002 | .004 | .005 | .E..ALP |
| .E..ML | .007 | .012 | .018 | .005 | .009 | .013 | .004 | .006 | .010 | .003 | .006 | .008 | .003 | .005 | .008 | .E..ML |
| .S..MM | .008 | .015 | .024 | .006 | .011 | .017 | .005 | .008 | .013 | .004 | .007 | .011 | .004 | .007 | .010 | .S..MM |
| .S..MH | .009 | .017 | .028 | .006 | .012 | .020 | .005 | .009 | .015 | .004 | .008 | .013 | .004 | .007 | .012 | .S..MH |
| Light | General | Heavy |
| Material Group | WK15CM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU35PM | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | 260 | 230 | 215 |
| 2 | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | 220 | 190 | 160 | |
| 3 | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | 200 | 170 | 140 | |
| 4 | – | – | – | – | – | – | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | 180 | 150 | 120 | |
| 5 | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | 170 | 145 | 120 | 150 | 135 | 120 | |
| 6 | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | 150 | 110 | 80 | 130 | 100 | 80 | |
| M | 1 | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | 210 | 170 | 140 | 170 | 150 | 135 |
| 2 | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | 180 | 145 | 120 | 155 | 130 | 110 | |
| 3 | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | 145 | 110 | 85 | 115 | 100 | 80 | |
| K | 1 | 420 | 385 | 340 | 270 | 245 | 215 | – | – | – | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | – | – | – | – | – | – |
| 2 | 335 | 295 | 275 | 210 | 190 | 175 | – | – | – | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – | |
| 3 | 280 | 250 | 230 | 175 | 160 | 145 | – | – | – | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 |
| 2 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | |
| 3 | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | |
| 4 | – | – | – | – | – | – | – | – | – | 70 | 50 | 35 | – | – | – | – | – | – | 60 | 50 | 30 | 60 | 45 | 30 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Material Group | WK15CM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU35PM | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 1085 | 935 | 885 | 1495 | 1295 | 1215 | 970 | 855 | 805 | – | – | – | 855 | 755 | 705 |
| 2 | – | – | – | – | – | – | – | – | – | 900 | 785 | 655 | 920 | 835 | 755 | 820 | 705 | 590 | – | – | – | 720 | 625 | 525 | |
| 3 | – | – | – | – | – | – | – | – | – | 835 | 705 | 575 | 835 | 755 | 675 | 755 | 640 | 525 | – | – | – | 655 | 560 | 460 | |
| 4 | – | – | – | – | – | – | – | – | – | 740 | 605 | 490 | 625 | 575 | 525 | 675 | 560 | 445 | – | – | – | 590 | 490 | 395 | |
| 5 | – | – | – | – | – | – | – | – | – | 605 | 560 | 490 | 855 | 755 | 690 | 560 | 510 | 445 | 560 | 475 | 395 | 490 | 445 | 395 | |
| 6 | – | – | – | – | – | – | – | – | – | 540 | 410 | 330 | 525 | 445 | 360 | 490 | 375 | 295 | 490 | 360 | 260 | 425 | 330 | 260 | |
| M | 1 | – | – | – | – | – | – | – | – | – | 675 | 590 | 540 | 675 | 605 | 510 | 640 | 560 | 510 | 690 | 560 | 460 | 560 | 490 | 445 |
| 2 | – | – | – | – | – | – | – | – | – | 605 | 525 | 425 | 605 | 525 | 460 | 575 | 490 | 410 | 590 | 475 | 395 | 510 | 425 | 360 | |
| 3 | – | – | – | – | – | – | – | – | – | 460 | 395 | 310 | 475 | 425 | 375 | 425 | 375 | 295 | 475 | 360 | 280 | 375 | 330 | 260 | |
| K | 1 | 1380 | 1265 | 1115 | 885 | 805 | 705 | – | – | – | 755 | 675 | 605 | 970 | 870 | 785 | – | – | – | – | – | – | – | – | – |
| 2 | 1100 | 970 | 900 | 690 | 625 | 575 | – | – | – | 590 | 525 | 490 | 770 | 690 | 625 | – | – | – | – | – | – | – | – | – | |
| 3 | 920 | 820 | 755 | 575 | 525 | 475 | – | – | – | 490 | 445 | 395 | 640 | 575 | 525 | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | 3525 | 3100 | 2870 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | 115 | 100 | 80 |
| 2 | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | 115 | 100 | 80 | |
| 3 | – | – | – | – | – | – | – | – | – | 165 | 130 | 80 | – | – | – | 165 | 130 | 100 | 165 | 130 | 80 | 150 | 115 | 80 | |
| 4 | – | – | – | – | – | – | – | – | – | 230 | 165 | 115 | – | – | – | 215 | 165 | 115 | 195 | 165 | 100 | 195 | 150 | 100 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
