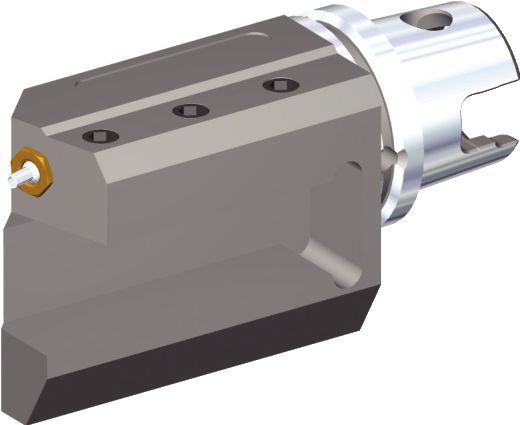

    STA • Single SQ Adapter

    Single Square Shank Adapters

    Material Number1516683

    ISO Catalog IDKM63XMZSTAR16YANSI Catalog IDKM63XMZSTAR16Y

    KM63XMZ™ Cutting Units Single Square Shank Adapters
    KM63XMZ™ Cutting Units Single Square Shank Adapters
    KM63XMZ™ Cutting Units Single Square Shank Adapters
    Open expanded view
    KM63XMZ™ Cutting Units Single Square Shank Adapters
    KM63XMZ™ Cutting Units Single Square Shank Adapters
    Generic representation
    List Price
    ₹108,094.00/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Shank - KM-XMZShank - KM-XMZ
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 1516683
    Metric
    Inch
    Material Number1516683
    ISO Catalog IDKM63XMZSTAR16Y
    ANSI Catalog IDKM63XMZSTAR16Y
    [L1] Gage Length23 mm
    [L1] Gage Length.9055 in
    [LPR] Protruding Length 130 mm
    [LPR] Protruding Length 5.118 in
    [F] F Dimension 13.25 mm
    [F] F Dimension .5217 in
    [HW] Shank Height 25.4 mm
    [HW] Shank Height 1 in
    [BW] Shank Width 25.4 mm
    [BW] Shank Width 1 in
    [B2] Overall Width 70.15 mm
    [B2] Overall Width 2.762 in
    Torque Newton Meters55
    Weight Kilograms3.59
    See all Product Variants
