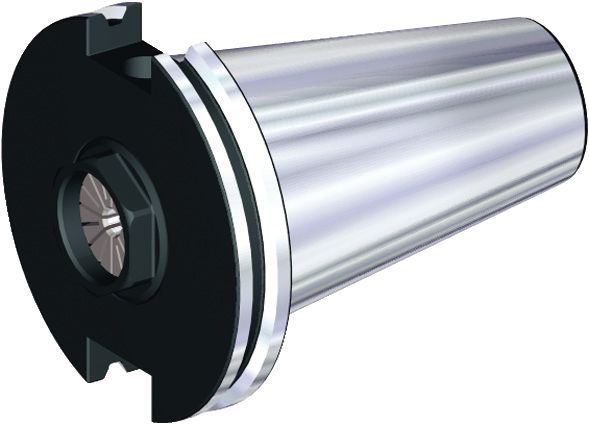

    ER Short-CV Z Form AD

    ER Single-Angle Collet Chucks Short

    Material Number2978741

    ISO Catalog IDCV50ZSER32106ANSI Catalog IDCV50ZSER32106

    CAT Shank Tools ER Single-Angle Collet Chucks Short
    CAT Shank Tools ER Single-Angle Collet Chucks Short
    CAT Shank Tools ER Single-Angle Collet Chucks Short
    Open expanded view
    CAT Shank Tools ER Single-Angle Collet Chucks Short
    CAT Shank Tools ER Single-Angle Collet Chucks Short
    Generic representation
    List Price
    $226.03/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Axial Adjustment - EndAxial Adjustment - End
    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Shank - Cylindrical Whistle Notch™Shank - Cylindrical Whistle Notch™
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Collet - ER DIN 6499Collet - ER DIN 6499
    • Balance - G 2.5@20,000 min-1Balance - G 2.5@20,000 min-1
    • Shank - SK CAT(CV) ANSI B5.50 1"–8 unc DrawbarShank - SK CAT(CV) ANSI B5.50 1"–8 unc Drawbar
    • Shank - SK CAT(CV) ANSI B5.50 5/8"–11 unc DrawbarShank - SK CAT(CV) ANSI B5.50 5/8"–11 unc Drawbar
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2978741
    Metric
    Inch
    Material Number2978741
    ISO Catalog IDCV50ZSER32106
    ANSI Catalog IDCV50ZSER32106
    [CST] Catalog Collet SeriesER32
    [D11] Lock Nut Diameter35.875 mm
    [D11] Lock Nut Diameter1.412 in
    [L1] Gage Length27 mm
    [L1] Gage Length1.063 in
    [L9] Clamping Length 50 mm
    [L9] Clamping Hole Length 1.968 in
    [V] Adjustment Range 17 mm
    [V] Adjustment Range .6693 in
    Torque Catalog Foot Pounds100
    Stop Screw ID Drive Size4 mm & 5/32
    Weight Pounds5.32
    See all Product Variants

    Uses and application

    • Axial Adjustment - EndAxial Adjustment - End
    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Shank - Cylindrical Whistle Notch™Shank - Cylindrical Whistle Notch™
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Collet - ER DIN 6499Collet - ER DIN 6499
    • Balance - G 2.5@20,000 min-1Balance - G 2.5@20,000 min-1
    • Shank - SK CAT(CV) ANSI B5.50 1"–8 unc DrawbarShank - SK CAT(CV) ANSI B5.50 1"–8 unc Drawbar
    • Shank - SK CAT(CV) ANSI B5.50 5/8"–11 unc DrawbarShank - SK CAT(CV) ANSI B5.50 5/8"–11 unc Drawbar

    Features and benefits

    • Grip (2:1 advantage).

    Create Solution to calculate Feeds and Speeds
