Surfaçage
Rainurage : Bout plat
Fraisage de côté/avec épaulement : Bout plat
Fraisage — Arrosage interne
Fraisage — 3 taillesDownloaded file will be available after import in the {{cadTool}} tool library.

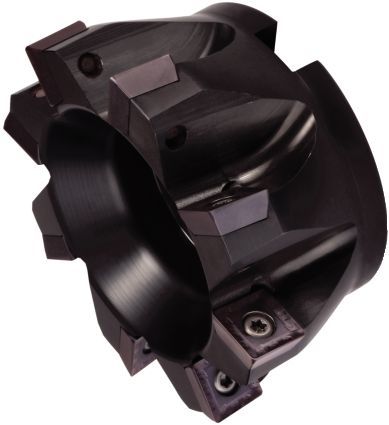

| Numéro de matériel | 2646793 |
| Ref. ISO Catalogue | M690D400Z08S150SD15 |
| Ref. ANSI Catalogue | M690D400Z08S150SD15 |
| [D1] Diamètre effectif de coupe | 101.6 mm |
| [D1] Diamètre effectif de coupe | 4 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 38.1 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 1.5 in |
| [D6] Diamètre du moyeu | 78.74 mm |
| [D6] Diamètre du moyeu | 3.1 in |
| [L] Longueur totale | 50.8 mm |
| [L] Longueur totale | 2 in |
| [AP1MAX] 1re profondeur de coupe maximale | 12.7 mm |
| [AP1MAX] 1re profondeur de coupe maximale | .5 in |
| Nombre de plaquettes | 8 |
| T/Min max | 15800 |
| Alimentation en arrosage | N |
| Poids Livres | 2.7 |
SurfaçageRainurage : Bout platFraisage de côté/avec épaulement : Bout platFraisage — Arrosage interneFraisage — 3 taillesCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance | |
| P1–P2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P3–P4 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P5–P6 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M1–M2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M3 | .E..ML | WS40PM | .S..MM | WS40PM | .S..MH | WP35CM |
| K1–K2 | .E..ML | WK15CM | .E..ML | WK15CM | .S..MH | WK15CM |
| K3 | .E..ML | WK15CM | .S..MM | TN6525 | .S..MH | TN6525 |
| N1–N2 | .ALP | THM-U | .E..ML | THM-U | .S..ML | THM-U |
| N3 | .ALP | THM-U | .E..ML | THM-U | .S..ML | THM-U |
| S1–S2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| S3 | .E..ML | TN6540 | .S..MM | WS30PM | .S..MM | TN6540 |
| S4 | .E..ML | TN6540 | .S..MM | WS30PM | .S..MM | TN6540 |
| H1 | .S..MM | WS30PM | .S..MM | WS30PM | .S..MM | WS30PM |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance | |
| P1–P2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P3–P4 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P5–P6 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M1–M2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M3 | .E..ML | TN6540 | .S..MM | WP35CM | .S..MH | WP35CM |
| K1–K2 | .E..ML | WK15CM | .E..ML | WK15CM | .S..MH | WK15CM |
| K3 | .E..ML | WK15CM | .S..MM | WK15CM | .S..MH | WK15CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| S3 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| S4 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| H1 | .S..MM | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| .F..ALP | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | .F..ALP |
| .E..ML | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..ML |
| .S..MM | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .S..MM |
| .S..MH | 0,23 | 0,54 | 0,85 | 0,17 | 0,39 | 0,61 | 0,13 | 0,29 | 0,46 | 0,11 | 0,25 | 0,40 | 0,10 | 0,23 | 0,36 | .S..MH |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| .F..ALP | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | .F..ALP |
| .E..ML | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..ML |
| .S..MM | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .S..MM |
| .S..MH | 0,23 | 0,54 | 0,85 | 0,17 | 0,39 | 0,61 | 0,13 | 0,29 | 0,46 | 0,11 | 0,25 | 0,40 | 0,10 | 0,23 | 0,36 | .S..MH |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| .F..ALP | .005 | .009 | .019 | .003 | .007 | .013 | .003 | .005 | .010 | .002 | .004 | .009 | .002 | .004 | .008 | .F..ALP |
| .E..ML | .005 | .014 | .022 | .003 | .010 | .016 | .003 | .007 | .012 | .002 | .006 | .010 | .002 | .006 | .010 | .E..ML |
| .S..MM | .005 | .016 | .027 | .003 | .012 | .020 | .003 | .009 | .015 | .002 | .008 | .013 | .002 | .007 | .012 | .S..MM |
| .S..MH | .009 | .021 | .033 | .007 | .015 | .024 | .005 | .011 | .018 | .004 | .010 | .016 | .004 | .009 | .014 | .S..MH |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| .E..ML | .007 | .019 | .032 | .005 | .014 | .023 | .004 | .010 | .017 | .003 | .009 | .015 | .003 | .008 | .014 | .E..ML |
| .S..MM | .008 | .021 | .035 | .006 | .015 | .025 | .004 | .011 | .019 | .004 | .010 | .016 | .003 | .009 | .015 | .S..MM |
| .S..MH | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..MH |
| Travaux légers | Applications générales | Travaux lourds |
| Groupe Matières | TN6520 | TN6525 | TN6540 | WP35CM | |||||||||
| P | 0 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | – | – | – |
| 1 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 455 | 395 | 370 | |
| 2 | – | – | – | 265 | 210 | 180 | 210 | 160 | 140 | 280 | 255 | 230 | |
| 3 | – | – | – | 235 | 180 | 155 | 180 | 140 | 115 | 255 | 230 | 205 | |
| 4 | – | – | – | 195 | 140 | 120 | 150 | 110 | 90 | 190 | 175 | 160 | |
| 5 | – | – | – | 260 | 195 | 165 | 200 | 150 | 125 | 260 | 230 | 210 | |
| 6 | – | – | – | 170 | 135 | 110 | 135 | 100 | 85 | 160 | 135 | 110 | |
| M | 1 | – | – | – | 160 | 100 | 65 | 110 | 65 | 50 | 205 | 185 | 155 |
| 2 | – | – | – | 100 | 65 | 40 | 65 | 40 | 35 | 185 | 160 | 140 | |
| 3 | – | – | – | 105 | 65 | 45 | 70 | 40 | 35 | 145 | 130 | 115 | |
| K | 1 | 375 | 265 | 190 | 230 | 205 | 185 | 185 | 170 | 150 | 295 | 265 | 240 |
| 2 | 325 | 210 | 160 | 180 | 160 | 150 | 145 | 130 | 115 | 235 | 210 | 190 | |
| 3 | 250 | 190 | 135 | 150 | 135 | 120 | 130 | 120 | 105 | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 40 | 30 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | 20 | 15 | 10 | – | – | – | |
| 3 | – | – | – | – | – | – | 60 | 35 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | 50 | 25 | 20 | 66 | 50 | 33 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| Groupe Matières | WK15CM | WS30PM | WS40PM | THM-U | |||||||||
| P | 0 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 280 | 245 | 230 | – | – | – | |
| 2 | – | – | – | – | – | – | 235 | 205 | 170 | – | – | – | |
| 3 | – | – | – | – | – | – | 215 | 185 | 150 | – | – | – | |
| 4 | – | – | – | – | – | – | 195 | 160 | 130 | – | – | – | |
| 5 | – | – | – | – | – | – | 160 | 140 | 130 | – | – | – | |
| 6 | – | – | – | – | – | – | 140 | 110 | 85 | – | – | – | |
| M | 1 | – | – | – | 225 | 200 | 185 | 260 | 190 | 115 | – | – | – |
| 2 | – | – | – | 205 | 180 | 145 | 230 | 170 | 105 | – | – | – | |
| 3 | – | – | – | 155 | 135 | 105 | 190 | 140 | 80 | – | – | – | |
| K | 1 | 420 | 385 | 340 | – | – | – | – | – | – | 190 | 170 | 150 |
| 2 | 335 | 295 | 275 | – | – | – | – | – | – | – | – | – | |
| 3 | 280 | 250 | 230 | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | 1075 | 945 | 945 | 2000 | 1200 | 1000 |
| 2 | – | – | – | – | – | – | 945 | 875 | 845 | 1365 | 815 | 665 | |
| 3 | – | – | – | – | – | – | 875 | 760 | 760 | 800 | 500 | 400 | |
| S | 1 | – | – | – | 45 | 40 | 30 | 62 | 45 | 27 | – | – | – |
| 2 | – | – | – | 45 | 40 | 30 | 55 | 40 | 26 | – | – | – | |
| 3 | – | – | – | 55 | 45 | 30 | 64 | 46 | 29 | – | – | – | |
| 4 | – | – | – | 85 | 60 | 40 | 90 | 66 | 42 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| Groupe Matières | TN6520 | TN6525 | TN6540 | WP35CM | |||||||||
| P | 0 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | – | – | – |
| 1 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 455 | 395 | 370 | |
| 2 | – | – | – | 265 | 210 | 180 | 210 | 160 | 140 | 280 | 255 | 230 | |
| 3 | – | – | – | 235 | 180 | 155 | 180 | 140 | 115 | 255 | 230 | 205 | |
| 4 | – | – | – | 195 | 140 | 120 | 150 | 110 | 90 | 190 | 175 | 160 | |
| 5 | – | – | – | 260 | 195 | 165 | 200 | 150 | 125 | 260 | 230 | 210 | |
| 6 | – | – | – | 170 | 135 | 110 | 135 | 100 | 85 | 160 | 135 | 110 | |
| M | 1 | – | – | – | 160 | 100 | 65 | 110 | 65 | 50 | 205 | 185 | 155 |
| 2 | – | – | – | 100 | 65 | 40 | 65 | 40 | 35 | 185 | 160 | 140 | |
| 3 | – | – | – | 105 | 65 | 45 | 70 | 40 | 35 | 145 | 130 | 115 | |
| K | 1 | 375 | 265 | 190 | 230 | 205 | 185 | 185 | 170 | 150 | 295 | 265 | 240 |
| 2 | 325 | 210 | 160 | 180 | 160 | 150 | 145 | 130 | 115 | 235 | 210 | 190 | |
| 3 | 250 | 190 | 135 | 150 | 135 | 120 | 130 | 120 | 105 | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 40 | 30 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | 20 | 15 | 10 | – | – | – | |
| 3 | – | – | – | – | – | – | 60 | 35 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | 50 | 25 | 20 | 66 | 50 | 33 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| Groupe Matières | WK15CM | WS30PM | WS40PM | THM-U | |||||||||
| P | 0 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 280 | 245 | 230 | – | – | – | |
| 2 | – | – | – | – | – | – | 235 | 205 | 170 | – | – | – | |
| 3 | – | – | – | – | – | – | 215 | 185 | 150 | – | – | – | |
| 4 | – | – | – | – | – | – | 195 | 160 | 130 | – | – | – | |
| 5 | – | – | – | – | – | – | 160 | 140 | 130 | – | – | – | |
| 6 | – | – | – | – | – | – | 140 | 110 | 85 | – | – | – | |
| M | 1 | – | – | – | 225 | 200 | 185 | 260 | 190 | 115 | – | – | – |
| 2 | – | – | – | 205 | 180 | 145 | 230 | 170 | 105 | – | – | – | |
| 3 | – | – | – | 155 | 135 | 105 | 190 | 140 | 80 | – | – | – | |
| K | 1 | 420 | 385 | 340 | – | – | – | – | – | – | 190 | 170 | 150 |
| 2 | 335 | 295 | 275 | – | – | – | – | – | – | – | – | – | |
| 3 | 280 | 250 | 230 | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | 1075 | 945 | 945 | 2000 | 1200 | 1000 |
| 2 | – | – | – | – | – | – | 945 | 875 | 845 | 1365 | 815 | 665 | |
| 3 | – | – | – | – | – | – | 875 | 760 | 760 | 800 | 500 | 400 | |
| S | 1 | – | – | – | 45 | 40 | 30 | 62 | 45 | 27 | – | – | – |
| 2 | – | – | – | 45 | 40 | 30 | 55 | 40 | 26 | – | – | – | |
| 3 | – | – | – | 55 | 45 | 30 | 64 | 46 | 29 | – | – | – | |
| 4 | – | – | – | 85 | 60 | 40 | 90 | 66 | 42 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
