Fresatura in rampa: Grezzo
Scanalatura: Testa sferica
Contornatura/fresatura a spallamento: Testa sferica
Profilatura 3D

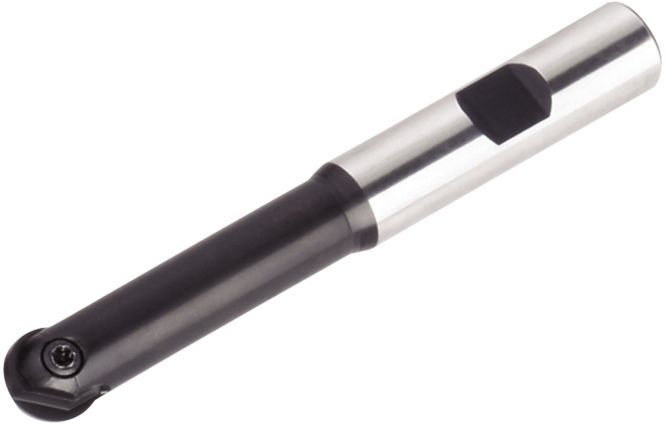

Codolo — Cilindrico Weldon 2 piani
Fresatura di tascheDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 2243621 |
| ISO Catalog ID | M270BD020B20L120 |
| ANSI Catalog ID | M270BD020B20L120 |
| Qualità | W |
| [D1] Diametro di taglio effettivo | 20 mm |
| [D1] Diametro di taglio effettivo | .7874 in |
| [D] Dia adattatore / stelo / foro | 20 mm |
| [D] Dia adattatore / stelo / foro | .7874 in |
| [L] Lunghezza complessiva | 120 mm |
| [L] Lunghezza complessiva | 4.724 in |
| [L2] Lunghezza testa | 70 mm |
| [L2] Lunghezza testa | 2.755 in |
| Numero di inserti | 1 |
| [Z] Numero di vani | 2 |
| Inserto di riferimento | M270B.2 |
| Max giri/min | 52000 |
| Adduzione refrigerante | N |
| Peso in chilogrammi | 0.2 |
Fresatura in rampa: GrezzoScanalatura: Testa sfericaContornatura/fresatura a spallamento: Testa sfericaProfilatura 3DCodolo — Cilindrico Weldon 2 pianiFresatura di tascheCrea una soluzione per calcolare avanzamenti e velocità
Dopo aver creato una soluzione, basta scegliere l'icona Avanzamento e Velocità e il nostro sistema fornirà dei suggerimenti. Puoi personalizzare le informazioni aggiungendo la tua macchina e le specifiche o apportare delle modifiche utilizzando i cursori.
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| P3–P4 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| P5–P6 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| M1–M2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M3 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| K1–K2 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| K3 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| P3–P4 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| P5–P6 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| M1–M2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M3 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| K1–K2 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| K3 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN6525 | BR | TN6540 | BR | WP35CM |
| P3–P4 | BF | TN6525 | BR | TN6540 | BR | WP35CM |
| P5–P6 | BF | TN6525 | BR | TN6540 | BR | WP35CM |
| M1–M2 | BF | TN6525 | BF | TN6525 | BR | WP35CM |
| M3 | BF | TN6525 | BF | TN6525 | BR | WP35CM |
| K1–K2 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| K3 | BF | TN2505 | BF | WU10PM | BF | WU10PM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | BF | TN2505 | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BR | TN6540 | BF | TN6540 | BF | TN6540 |
| P3–P4 | BR | TN6540 | BF | TN6540 | BR | WP35CM |
| P5–P6 | BR | TN6540 | BR | WP35CM | BR | WP35CM |
| M1–M2 | BR | TN6540 | BR | TN6540 | BR | TN6540 |
| M3 | BR | TN6540 | BR | TN6540 | BR | TN6540 |
| K1–K2 | BR | TN2505 | BR | TN2505 | – | – |
| K3 | BR | TN2505 | BR | TN2505 | – | – |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | BR | TN6540 | – | – |
| S3 | – | – | BR | TN6540 | – | – |
| S4 | – | – | BR | TN6540 | – | – |
| H1 | – | – | BR | TN2505 | – | – |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| P3–P4 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| P5–P6 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M1–M2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M3 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| K1–K2 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| K3 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | BR | WP35CM | – | – | – | – |
| S3 | BR | WP35CM | – | – | – | – |
| S4 | BF | TN2505 | BR | WP35CM | – | – |
| H1 | BF | TN2505 | BR | WP35CM | BR | WP35CM |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| P3–P4 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| P5–P6 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M1–M2 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| M3 | BR | WP35CM | BR | WP35CM | BR | WP35CM |
| K1–K2 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| K3 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | BR | WP35CM | – | – | – | – |
| S3 | BR | WP35CM | – | – | – | – |
| S4 | BR | WP35CM | BR | WP35CM | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BF | TN2505 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| M3 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | – | – |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| M3 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN2510 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN2510 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BR | TN2510 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BF | TN6525 | BF | TN6525 | BR | TN7535 |
| M3 | BF | TN6525 | BF | TN6525 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | BF | TN2505 | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BR | TN2510 |
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN6540 | BF | TN6540 | BF | TN6540 |
| P3–P4 | BF | TN6540 | BF | TN6540 | BF | TN7535 |
| P5–P6 | BF | TN6540 | BF | TN7535 | BF | TN7535 |
| M1–M2 | BF | TN6540 | BF | TN6540 | BF | TN7535 |
| M3 | BF | TN6540 | BF | TN6540 | BF | TN7535 |
| K1–K2 | BR | TN2505 | BR | TN2505 | – | – |
| K3 | BR | TN2505 | BR | TN2505 | – | – |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | BF | TN6540 | – | – |
| S3 | – | – | BF | TN6540 | – | – |
| S4 | – | – | BF | TN6540 | – | – |
| H1 | – | – | BR | TN2505 | – | – |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,12 | 0,23 | 0,42 | 0,08 | 0,16 | 0,29 | 0,06 | 0,12 | 0,21 | 0,05 | 0,10 | 0,18 | 0,05 | 0,10 | 0,17 | BF |
| BR | 0,19 | 0,29 | 0,51 | 0,14 | 0,20 | 0,35 | 0,10 | 0,15 | 0,25 | 0,09 | 0,13 | 0,22 | 0,08 | 0,12 | 0,20 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,14 | 0,27 | 0,49 | 0,10 | 0,19 | 0,34 | 0,07 | 0,14 | 0,25 | 0,06 | 0,12 | 0,21 | 0,06 | 0,11 | 0,19 | BF |
| BR | 0,22 | 0,34 | 0,61 | 0,16 | 0,24 | 0,40 | 0,12 | 0,17 | 0,29 | 0,10 | 0,15 | 0,25 | 0,09 | 0,14 | 0,23 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,25 | 0,51 | 1,02 | 0,18 | 0,34 | 0,63 | 0,13 | 0,25 | 0,44 | 0,11 | 0,22 | 0,38 | 0,10 | 0,20 | 0,35 | BF |
| BR | 0,41 | 0,66 | 1,34 | 0,28 | 0,44 | 0,76 | 0,21 | 0,31 | 0,53 | 0,18 | 0,27 | 0,45 | 0,17 | 0,25 | 0,41 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,18 | 0,36 | 0,68 | 0,13 | 0,25 | 0,45 | 0,09 | 0,18 | 0,32 | 0,08 | 0,16 | 0,28 | 0,08 | 0,15 | 0,25 | BF |
| BR | 0,29 | 0,46 | 0,84 | 0,21 | 0,31 | 0,54 | 0,15 | 0,23 | 0,39 | 0,13 | 0,20 | 0,33 | 0,12 | 0,18 | 0,30 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BR | 0,15 | 0,33 | 0,50 | 0,11 | 0,24 | 0,35 | 0,08 | 0,17 | 0,26 | 0,07 | 0,15 | 0,22 | 0,06 | 0,14 | 0,20 | BR |
| BF | 0,24 | 0,46 | 0,69 | 0,17 | 0,32 | 0,47 | 0,13 | 0,23 | 0,34 | 0,11 | 0,20 | 0,29 | 0,10 | 0,18 | 0,27 | BF |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BR | 0,13 | 0,29 | 0,43 | 0,09 | 0,20 | 0,30 | 0,07 | 0,15 | 0,22 | 0,06 | 0,13 | 0,19 | 0,06 | 0,12 | 0,18 | BR |
| BF | 0,21 | 0,39 | 0,58 | 0,15 | 0,27 | 0,40 | 0,11 | 0,20 | 0,29 | 0,10 | 0,18 | 0,25 | 0,09 | 0,16 | 0,23 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BR | 0,28 | 0,63 | 0,99 | 0,20 | 0,43 | 0,64 | 0,15 | 0,31 | 0,46 | 0,13 | 0,27 | 0,40 | 0,12 | 0,25 | 0,36 | BR |
| BF | 0,45 | 0,89 | 1,42 | 0,31 | 0,58 | 0,87 | 0,23 | 0,42 | 0,61 | 0,20 | 0,36 | 0,53 | 0,18 | 0,33 | 0,48 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BR | 0,20 | 0,45 | 0,68 | 0,14 | 0,31 | 0,46 | 0,11 | 0,23 | 0,34 | 0,09 | 0,20 | 0,29 | 0,08 | 0,18 | 0,27 | BR |
| BF | 0,32 | 0,61 | 0,94 | 0,23 | 0,42 | 0,62 | 0,17 | 0,31 | 0,45 | 0,15 | 0,26 | 0,38 | 0,13 | 0,24 | 0,35 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,14 | 0,28 | 0,45 | 0,10 | 0,20 | 0,31 | 0,08 | 0,15 | 0,23 | 0,07 | 0,13 | 0,20 | 0,06 | 0,12 | 0,18 | BF |
| BR | 0,21 | 0,38 | 0,59 | 0,15 | 0,27 | 0,41 | 0,11 | 0,20 | 0,30 | 0,10 | 0,17 | 0,26 | 0,09 | 0,16 | 0,24 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,16 | 0,33 | 0,52 | 0,12 | 0,23 | 0,36 | 0,09 | 0,17 | 0,27 | 0,08 | 0,15 | 0,23 | 0,07 | 0,14 | 0,21 | BF |
| BR | 0,24 | 0,45 | 0,69 | 0,17 | 0,31 | 0,48 | 0,13 | 0,23 | 0,35 | 0,11 | 0,20 | 0,30 | 0,10 | 0,18 | 0,28 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,21 | 0,44 | 0,70 | 0,15 | 0,31 | 0,48 | 0,11 | 0,23 | 0,35 | 0,10 | 0,20 | 0,30 | 0,09 | 0,18 | 0,28 | BF |
| BR | 0,32 | 0,60 | 0,94 | 0,23 | 0,42 | 0,63 | 0,17 | 0,31 | 0,46 | 0,15 | 0,26 | 0,40 | 0,13 | 0,24 | 0,36 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,29 | 0,61 | 0,99 | 0,21 | 0,43 | 0,66 | 0,16 | 0,31 | 0,48 | 0,14 | 0,27 | 0,42 | 0,12 | 0,25 | 0,38 | BF |
| BR | 0,44 | 0,85 | 1,38 | 0,31 | 0,57 | 0,88 | 0,23 | 0,42 | 0,63 | 0,20 | 0,36 | 0,54 | 0,18 | 0,33 | 0,50 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,19 | 0,24 | 0,40 | 0,13 | 0,17 | 0,28 | 0,10 | 0,13 | 0,21 | 0,09 | 0,11 | 0,18 | 0,08 | 0,10 | 0,17 | BF |
| BR | 0,24 | 0,38 | 0,65 | 0,17 | 0,27 | 0,46 | 0,13 | 0,20 | 0,34 | 0,11 | 0,17 | 0,30 | 0,10 | 0,16 | 0,27 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,22 | 0,28 | 0,46 | 0,15 | 0,20 | 0,33 | 0,12 | 0,15 | 0,24 | 0,10 | 0,13 | 0,21 | 0,09 | 0,12 | 0,19 | BF |
| BR | 0,27 | 0,44 | 0,76 | 0,20 | 0,31 | 0,53 | 0,15 | 0,23 | 0,39 | 0,13 | 0,20 | 0,34 | 0,12 | 0,18 | 0,31 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,39 | 0,51 | 0,85 | 0,28 | 0,36 | 0,59 | 0,21 | 0,27 | 0,44 | 0,18 | 0,23 | 0,38 | 0,17 | 0,21 | 0,35 | BF |
| BR | 0,50 | 0,81 | 1,44 | 0,36 | 0,56 | 0,97 | 0,26 | 0,42 | 0,71 | 0,23 | 0,36 | 0,61 | 0,21 | 0,33 | 0,56 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,28 | 0,37 | 0,61 | 0,20 | 0,27 | 0,43 | 0,15 | 0,20 | 0,32 | 0,13 | 0,17 | 0,28 | 0,12 | 0,16 | 0,25 | BF |
| BR | 0,36 | 0,58 | 1,01 | 0,26 | 0,41 | 0,70 | 0,19 | 0,30 | 0,52 | 0,17 | 0,26 | 0,45 | 0,15 | 0,24 | 0,41 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,17 | 0,31 | 0,50 | 0,13 | 0,22 | 0,36 | 0,09 | 0,16 | 0,26 | 0,08 | 0,14 | 0,23 | 0,08 | 0,13 | 0,21 | BF |
| BR | 0,24 | 0,38 | 0,65 | 0,17 | 0,27 | 0,46 | 0,13 | 0,20 | 0,34 | 0,11 | 0,17 | 0,30 | 0,10 | 0,16 | 0,27 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,20 | 0,35 | 0,58 | 0,15 | 0,25 | 0,41 | 0,11 | 0,19 | 0,30 | 0,09 | 0,16 | 0,27 | 0,09 | 0,15 | 0,24 | BF |
| BR | 0,27 | 0,44 | 0,76 | 0,20 | 0,31 | 0,53 | 0,15 | 0,23 | 0,39 | 0,13 | 0,20 | 0,34 | 0,12 | 0,18 | 0,31 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,37 | 0,65 | 1,09 | 0,26 | 0,46 | 0,75 | 0,19 | 0,34 | 0,55 | 0,17 | 0,29 | 0,47 | 0,15 | 0,27 | 0,43 | BF |
| BR | 0,50 | 0,81 | 1,44 | 0,36 | 0,56 | 0,97 | 0,26 | 0,42 | 0,71 | 0,23 | 0,36 | 0,61 | 0,21 | 0,33 | 0,56 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| BF | 0,27 | 0,47 | 0,77 | 0,19 | 0,33 | 0,54 | 0,14 | 0,25 | 0,40 | 0,12 | 0,21 | 0,35 | 0,11 | 0,20 | 0,32 | BF |
| BR | 0,36 | 0,58 | 1,02 | 0,26 | 0,41 | 0,70 | 0,19 | 0,30 | 0,52 | 0,17 | 0,26 | 0,45 | 0,15 | 0,24 | 0,41 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .005 | .009 | .016 | .003 | .006 | .011 | .002 | .005 | .008 | .002 | .004 | .007 | .002 | .004 | .007 | BF |
| BR | .007 | .011 | .020 | .005 | .008 | .013 | .004 | .006 | .010 | .003 | .005 | .008 | .003 | .005 | .008 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .005 | .010 | .019 | .004 | .007 | .013 | .003 | .005 | .010 | .002 | .005 | .008 | .002 | .004 | .008 | BF |
| BR | .009 | .013 | .023 | .006 | .009 | .016 | .004 | .007 | .011 | .004 | .006 | .010 | .004 | .005 | .009 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .010 | .020 | .039 | .007 | .013 | .024 | .005 | .010 | .017 | .004 | .008 | .015 | .004 | .008 | .013 | BF |
| BR | .016 | .025 | .051 | .011 | .017 | .029 | .008 | .012 | .021 | .007 | .011 | .018 | .006 | .010 | .016 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .007 | .014 | .026 | .005 | .010 | .017 | .004 | .007 | .013 | .003 | .006 | .011 | .003 | .006 | .010 | BF |
| BR | .011 | .018 | .033 | .008 | .012 | .021 | .006 | .009 | .015 | .005 | .008 | .013 | .005 | .007 | .012 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .005 | .011 | .017 | .004 | .008 | .012 | .003 | .006 | .009 | .002 | .005 | .007 | .002 | .005 | .007 | BF |
| BR | .008 | .015 | .023 | .006 | .011 | .016 | .004 | .008 | .011 | .004 | .007 | .010 | .003 | .006 | .009 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .006 | .013 | .020 | .004 | .009 | .014 | .003 | .007 | .010 | .003 | .006 | .009 | .003 | .005 | .008 | BF |
| BR | .009 | .018 | .027 | .007 | .012 | .018 | .005 | .009 | .013 | .004 | .008 | .011 | .004 | .007 | .010 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .008 | .017 | .026 | .006 | .012 | .018 | .004 | .009 | .013 | .004 | .008 | .011 | .003 | .007 | .010 | BF |
| BR | .012 | .024 | .036 | .009 | .016 | .024 | .006 | .012 | .017 | .006 | .010 | .015 | .005 | .009 | .014 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .011 | .024 | .038 | .008 | .017 | .025 | .006 | .012 | .018 | .005 | .011 | .015 | .004 | .010 | .014 | BF |
| BR | .017 | .034 | .055 | .012 | .022 | .034 | .009 | .016 | .024 | .008 | .014 | .020 | .007 | .013 | .019 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .005 | .011 | .017 | .004 | .008 | .012 | .003 | .006 | .009 | .003 | .005 | .008 | .002 | .005 | .007 | BF |
| BR | .008 | .015 | .023 | .006 | .011 | .016 | .004 | .008 | .012 | .004 | .007 | .010 | .003 | .006 | .009 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .006 | .013 | .020 | .005 | .009 | .014 | .003 | .007 | .010 | .003 | .006 | .009 | .003 | .005 | .008 | BF |
| BR | .009 | .017 | .027 | .007 | .012 | .018 | .005 | .009 | .014 | .004 | .008 | .012 | .004 | .007 | .011 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .011 | .024 | .038 | .008 | .016 | .026 | .006 | .012 | .019 | .005 | .011 | .016 | .005 | .010 | .015 | BF |
| BR | .017 | .033 | .053 | .012 | .022 | .034 | .009 | .016 | .024 | .008 | .014 | .021 | .007 | .013 | .019 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .008 | .017 | .027 | .006 | .012 | .019 | .004 | .009 | .014 | .004 | .008 | .012 | .004 | .007 | .011 | BF |
| BR | .012 | .023 | .036 | .009 | .016 | .024 | .006 | .012 | .018 | .006 | .010 | .015 | .005 | .009 | .014 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BR | .005 | .011 | .017 | .004 | .008 | .012 | .003 | .006 | .009 | .003 | .005 | .008 | .002 | .005 | .007 | BR |
| BF | .007 | .014 | .022 | .005 | .010 | .015 | .004 | .007 | .011 | .003 | .006 | .010 | .003 | .006 | .009 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BR | .006 | .013 | .020 | .005 | .009 | .014 | .003 | .007 | .010 | .003 | .006 | .009 | .003 | .005 | .008 | BR |
| BF | .008 | .016 | .025 | .006 | .011 | .018 | .005 | .008 | .013 | .004 | .007 | .011 | .004 | .007 | .010 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BR | .011 | .023 | .037 | .008 | .016 | .026 | .006 | .012 | .019 | .005 | .011 | .016 | .005 | .010 | .015 | BR |
| BF | .015 | .030 | .049 | .011 | .021 | .032 | .008 | .015 | .024 | .007 | .013 | .020 | .006 | .012 | .019 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BR | .008 | .017 | .027 | .006 | .012 | .018 | .004 | .009 | .014 | .004 | .008 | .012 | .004 | .007 | .011 | BR |
| BF | .011 | .021 | .034 | .008 | .015 | .023 | .006 | .011 | .017 | .005 | .010 | .015 | .005 | .009 | .014 | BF |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .007 | .009 | .015 | .005 | .007 | .011 | .004 | .005 | .008 | .003 | .004 | .007 | .003 | .004 | .007 | BF |
| BR | .009 | .015 | .025 | .007 | .011 | .018 | .005 | .008 | .013 | .004 | .007 | .012 | .004 | .006 | .011 | BR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .008 | .011 | .018 | .006 | .008 | .013 | .004 | .006 | .009 | .004 | .005 | .008 | .004 | .005 | .008 | BF |
| BR | .011 | .017 | .030 | .008 | .012 | .021 | .006 | .009 | .015 | .005 | .008 | .013 | .005 | .007 | .012 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .015 | .020 | .033 | .011 | .014 | .023 | .008 | .010 | .017 | .007 | .009 | .015 | .006 | .008 | .013 | BF |
| BR | .020 | .031 | .056 | .014 | .022 | .038 | .010 | .016 | .028 | .009 | .014 | .024 | .008 | .013 | .022 | BR |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BF | .011 | .014 | .024 | .008 | .010 | .017 | .006 | .008 | .012 | .005 | .007 | .011 | .005 | .006 | .010 | BF |
| BR | .014 | .023 | .040 | .010 | .016 | .027 | .008 | .012 | .020 | .007 | .010 | .017 | .006 | .009 | .016 | BR |
| Material Group | TN2505 | TN6525 | TN6540 | WP35CM | WU10PM | |||||||||||
| P | 1 | 550 | 420 | 360 | 410 | 320 | 280 | 360 | 280 | 240 | 455 | 395 | 370 | – | – | – |
| 2 | 320 | 240 | 205 | 320 | 250 | 215 | 250 | 190 | 170 | 280 | 255 | 230 | – | – | – | |
| 3 | 320 | 240 | 205 | 280 | 215 | 185 | 215 | 170 | 140 | 255 | 230 | 205 | – | – | – | |
| 4 | – | – | – | 235 | 170 | 145 | 180 | 130 | 110 | 190 | 175 | 160 | – | – | – | |
| 5 | – | – | – | 310 | 235 | 200 | 240 | 180 | 150 | 260 | 230 | 210 | – | – | – | |
| 6 | – | – | – | 205 | 160 | 130 | 160 | 120 | 100 | 160 | 135 | 110 | – | – | – | |
| M | 1 | – | – | – | 190 | 120 | 80 | 130 | 80 | 60 | 205 | 185 | 155 | – | – | – |
| 2 | – | – | – | 120 | 80 | 50 | 80 | 50 | 40 | 185 | 160 | 140 | – | – | – | |
| 3 | – | – | – | 125 | 80 | 55 | 85 | 50 | 40 | 145 | 130 | 115 | – | – | – | |
| K | 1 | 400 | 300 | 250 | 275 | 245 | 220 | 220 | 205 | 180 | 295 | 265 | 240 | 295 | 265 | 240 |
| 2 | 540 | 365 | 280 | 215 | 190 | 180 | 175 | 155 | 140 | 235 | 210 | 190 | 230 | 205 | 190 | |
| 3 | 310 | 190 | 155 | 180 | 160 | 145 | 155 | 145 | 125 | 195 | 175 | 160 | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 50 | 35 | 30 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 25 | 20 | 10 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 70 | 40 | 30 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 60 | 30 | 25 | 66 | 50 | 33 | – | – | – | |
| H | 1 | 175 | 140 | 95 | – | – | – | – | – | – | – | – | – | 160 | 130 | 90 |
| 2 | 175 | 140 | 95 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 140 | 115 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | |
| Material Group | TN2505 | TN2510 | TN6525 | TN6540 | TN7525 | TN7535 | TTI25 | |||||||||||||||
| P | 1 | 1810 | 1380 | 1180 | 2165 | 1910 | 1770 | 1340 | 1045 | 925 | 1180 | 925 | 785 | 1340 | 1025 | 925 | 1790 | 1555 | 1460 | 1415 | 1180 | 985 |
| 2 | 1045 | 785 | 670 | 1340 | 1220 | 1080 | 1045 | 830 | 710 | 830 | 630 | 550 | 1025 | 830 | 710 | 1105 | 1000 | 905 | 1025 | 830 | 710 | |
| 3 | 1045 | 785 | 670 | 1220 | 1080 | 1000 | 925 | 710 | 610 | 710 | 550 | 450 | 925 | 710 | 610 | 1000 | 905 | 805 | 1025 | 830 | 710 | |
| 4 | – | – | – | 905 | 845 | 750 | 770 | 550 | 475 | 590 | 430 | 355 | 770 | 550 | 475 | 750 | 690 | 630 | 865 | 710 | 590 | |
| 5 | – | – | – | 1080 | 985 | 905 | 1025 | 770 | 650 | 785 | 590 | 490 | 1025 | 770 | 650 | 1025 | 905 | 830 | 1045 | 770 | 650 | |
| 6 | – | – | – | 750 | 670 | 570 | 670 | 535 | 430 | 535 | 395 | 335 | 670 | 535 | 430 | 630 | 535 | 430 | 475 | 355 | 295 | |
| M | 1 | – | – | – | 890 | 785 | 690 | 630 | 395 | 260 | 430 | 260 | 200 | 805 | 725 | 610 | 805 | 725 | 610 | 1570 | 1025 | 710 |
| 2 | – | – | – | 805 | 690 | 630 | 395 | 260 | 155 | 260 | 155 | 140 | 725 | 630 | 550 | 725 | 630 | 550 | 1060 | 670 | 475 | |
| 3 | – | – | – | 630 | 570 | 490 | 415 | 260 | 180 | 275 | 155 | 140 | 570 | 510 | 450 | 570 | 510 | 450 | 1045 | 690 | 475 | |
| K | 1 | 1320 | 985 | 830 | 1380 | 1180 | 985 | 905 | 805 | 725 | 725 | 670 | 590 | 1240 | 925 | 785 | 1165 | 1045 | 940 | 725 | 610 | 510 |
| 2 | 1770 | 1200 | 925 | 1180 | 985 | 830 | 710 | 630 | 590 | 570 | 510 | 450 | 1060 | 785 | 650 | 925 | 830 | 750 | 590 | 475 | 415 | |
| 3 | 1025 | 630 | 510 | 985 | 830 | 650 | 590 | 535 | 475 | 510 | 475 | 415 | 785 | 650 | 550 | 770 | 690 | 630 | 475 | 415 | 335 | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 155 | 120 | 95 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 80 | 60 | 40 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 235 | 140 | 95 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 200 | 95 | 80 | – | – | – | – | – | – | – | – | – | |
| H | 1 | 570 | 450 | 310 | 475 | 360 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 570 | 450 | 310 | 475 | 360 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 450 | 370 | 260 | 380 | 260 | 150 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
I have read and accepted the Terms & Conditions of use
ISO Catalogo
ANSI Catalogo
to find similar products.Please select a file to download
Models
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | ISO Catalogo | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
