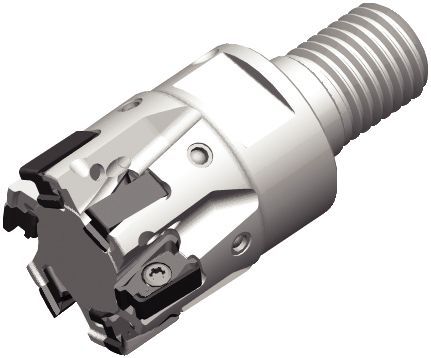

Surfaçage
Rainurage : Bout plat
Fraisage de côté/avec épaulement : Bout plat
Queue — à vis
Fraisage — Arrosage interneDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 6425554 |
| Ref. ISO Catalogue | VSM490D020Z03M10XN10 |
| Ref. ANSI Catalogue | VSM490D020Z03M10XN10 |
| [D1] Diamètre effectif de coupe | 20 mm |
| [D1] Diamètre effectif de coupe | .787 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 18 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | .709 in |
| [DPM] Diamètre du pilote du côté machine | 10.5 mm |
| [DPM] Diamètre du pilote du côté machine | .413 in |
| [G3X] Taille du filetage de connexion externe | M10 |
| [L2] Longueur de tête | 28 mm |
| [L2] Longueur de tête | 1.102 in |
| [WF] Largeur du méplat | 15 mm |
| [WF] Largeur du méplat | .589 in |
| [AP1MAX] 1re profondeur de coupe maximale | 10 mm |
| [AP1MAX] 1re profondeur de coupe maximale | .394 in |
| Nombre de plaquettes | 3 |
| T/Min max | 40200 |
| Alimentation en arrosage | Y |
| Poids en kilogrammes | 0.05 |
SurfaçageRainurage : Bout platFraisage de côté/avec épaulement : Bout platQueue — à visFraisage — Arrosage interneCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P3–P4 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P5–P6 | XNGU-MM | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP40PM |
| M1–M2 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| M3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| K1–K2 | XNPU-ML | WK15PM | XNGU-MH | WK15CM | XNGU-MH | WK15CM |
| K3 | XNPU-MM | WK15PM | XNGU-MH | WP35CM | XNGU-MH | WP35CM |
| N1–N2 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| N3 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| S1–S2 | XNGU-ML | WP25PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S4 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| H1 | XNGU-ML | WU10PM | XNGU-MM | WU10PM | – | – |
| Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | ||||||||||||||||
| Insert Geometry | 5% | 10% | 20% | 30% | 40–100% | Insert Geometry | ||||||||||
| .E..ALP | 0,12 | 0,23 | 0,32 | 0,08 | 0,17 | 0,23 | 0,06 | 0,13 | 0,18 | 0,06 | 0,11 | 0,15 | 0,05 | 0,10 | 0,14 | .E..ALP |
| .E..ML | 0,18 | 0,28 | 0,37 | 0,13 | 0,20 | 0,27 | 0,10 | 0,15 | 0,20 | 0,09 | 0,13 | 0,17 | 0,08 | 0,12 | 0,16 | .E..ML |
| .S..MM | 0,23 | 0,35 | 0,46 | 0,17 | 0,25 | 0,33 | 0,13 | 0,19 | 0,25 | 0,11 | 0,17 | 0,22 | 0,10 | 0,15 | 0,20 | .S..MM |
| .S..MH | 0,23 | 0,43 | 0,58 | 0,17 | 0,31 | 0,42 | 0,13 | 0,23 | 0,31 | 0,11 | 0,20 | 0,27 | 0,10 | 0,18 | 0,25 | .S..MH |
| Light | General | Heavy |
| Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | ||||||||||||||||
| Insert Geometry | 5% | 10% | 20% | 30% | 40–100% | Insert Geometry | ||||||||||
| .E..ALP | .005 | .009 | .013 | .003 | .007 | .009 | .003 | .005 | .007 | .002 | .004 | .006 | .002 | .004 | .006 | .E..ALP |
| .E..ML | .007 | .011 | .015 | .005 | .008 | .011 | .004 | .006 | .008 | .003 | .005 | .007 | .003 | .005 | .006 | .E..ML |
| .S..MM | .009 | .014 | .018 | .007 | .010 | .013 | .005 | .007 | .010 | .004 | .006 | .008 | .004 | .006 | .008 | .S..MM |
| .S..MH | .009 | .016 | .022 | .007 | .012 | .016 | .005 | .009 | .012 | .004 | .008 | .010 | .004 | .007 | .010 | .S..MH |
| Light | General | Heavy |
| Material Group | WK15CM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU10PM | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | 170 | 145 | 120 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | 150 | 110 | 80 | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | 210 | 170 | 140 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | 180 | 145 | 120 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | 145 | 110 | 85 | – | – | – | |
| K | 1 | 420 | 385 | 340 | 270 | 245 | 215 | – | – | – | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | – | – | – | 295 | 265 | 240 |
| 2 | 335 | 295 | 275 | 210 | 190 | 175 | – | – | – | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | 230 | 205 | 190 | |
| 3 | 280 | 250 | 230 | 175 | 160 | 145 | – | – | – | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 70 | 50 | 35 | – | – | – | – | – | – | 60 | 50 | 30 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 160 | 130 | 90 |
| Material Group | WK15CM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU10PM | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 1085 | 935 | 885 | 1495 | 1295 | 1215 | 970 | 855 | 805 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 900 | 785 | 655 | 920 | 835 | 755 | 820 | 705 | 590 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 835 | 705 | 575 | 835 | 755 | 675 | 755 | 640 | 525 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 740 | 605 | 490 | 625 | 575 | 525 | 675 | 560 | 445 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | 605 | 560 | 490 | 855 | 755 | 690 | 560 | 510 | 445 | 560 | 475 | 395 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | 540 | 410 | 330 | 525 | 445 | 360 | 490 | 375 | 295 | 490 | 360 | 260 | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | 675 | 590 | 540 | 675 | 605 | 510 | 640 | 560 | 510 | 690 | 560 | 460 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 605 | 525 | 425 | 605 | 525 | 460 | 575 | 490 | 410 | 590 | 475 | 395 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 460 | 395 | 310 | 475 | 425 | 375 | 425 | 375 | 295 | 475 | 360 | 280 | – | – | – | |
| K | 1 | 1380 | 1265 | 1115 | 885 | 805 | 705 | – | – | – | 755 | 675 | 605 | 970 | 870 | 785 | – | – | – | – | – | – | 970 | 870 | 785 |
| 2 | 1100 | 970 | 900 | 690 | 625 | 575 | – | – | – | 590 | 525 | 490 | 770 | 690 | 625 | – | – | – | – | – | – | 755 | 675 | 625 | |
| 3 | 920 | 820 | 755 | 575 | 525 | 475 | – | – | – | 490 | 445 | 395 | 640 | 575 | 525 | – | – | – | – | – | – | 640 | 575 | 525 | |
| N | 1 | – | – | – | – | – | – | 3525 | 3100 | 2870 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 165 | 130 | 80 | – | – | – | 165 | 130 | 100 | 165 | 130 | 80 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 230 | 165 | 115 | – | – | – | 215 | 165 | 115 | 195 | 165 | 100 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 525 | 425 | 295 |
