Planfräsen
Spiralförmiges Interpolieren
Tauchfräsen
Schräg-Eintauchfräsen Ins Volle
Nutenfräsen: Ebene Stirnfläche
3D-Profilfräsen/Kopierfräsen
Fräsen – Innere Kühlmittelzuführung
Fräsen – Eckfräsen
Umfangfräsen/Schulterfräsen: Schruppen
AuskammernDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Nummer | 5338918 |
| ISO Katalog Nummer | M370D80Z05WO12 |
| ANSI Katalog Nummer | M370D80Z05WO12 |

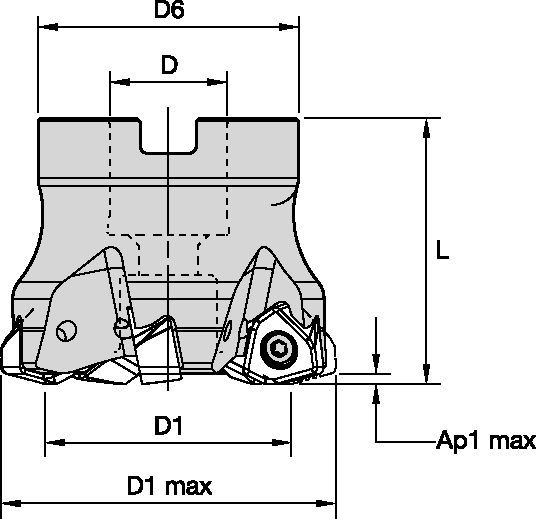

| [D1MAX] Schnittdurchmesser max. | 80 mm |
| [D1MAX] Schnittdurchmesser max. | 3.15 in |
| [D1] Effektiver Schneidendurchmesser | 63.07 mm |
| [D1] Effektiver Schneidendurchmesser | 2.483 in |
| [D] Adapter/Schaft/Bohrungsdurchmesser | 27 mm |
| [D] Adapter/Schaft/Bohrungsdurchmesser | 1.06 in |
| [D6] Nabendurchmesser | 60 mm |
| [D6] Nabendurchmesser | 2.362 in |
| [L] Gesamtlänge | 50 mm |
| [L] Gesamtlänge | 1.969 in |
| [AP1MAX] 1. maximale Schnitttiefe | 2 mm |
| [AP1MAX] 1. maximale Schnitttiefe | .078 in |
| Anzahl der Schneidkörper | 5 |
| Max. Drehzahl | 15440 |
| Kühlmittelzubehör | Y |
| Gewicht Kilogramm | 0.94 |
PlanfräsenSpiralförmiges InterpolierenTauchfräsenSchräg-Eintauchfräsen Ins VolleNutenfräsen: Ebene Stirnfläche3D-Profilfräsen/KopierfräsenFräsen – Innere KühlmittelzuführungFräsen – EckfräsenUmfangfräsen/Schulterfräsen: SchruppenAuskammernLösung erstellen, um Vorschübe und Geschwindigkeiten zu berechnen
Nachdem Sie eine Lösung erstellt haben, wählen Sie einfach das Symbol für Vorschübe und Geschwindigkeiten und unser System gibt Ihnen Empfehlungen. Sie können die Informationen anpassen, indem Sie Ihre Maschine und Spezifikationen hinzufügen oder Anpassungen mithilfe der Schieberegler vornehmen.
| Light | General | Heavy | ||||
| Material | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | ...MM | WU35PM | ...MM | WP40PM | ...MM | WP40PM |
| P3–P4 | ...MM | WP25PM | ...MM | WP25PM | ...MH | WP40PM |
| P5–P6 | ...MM | WP25PM | ...MM | WP35CM | ...MH | WP35CM |
| M1–M2 | ...MM | WS30PM | ...MM | WU35PM | ...MM | WP40PM |
| M3 | ...MM | WP25PM | ...MM | WP35CM | ...MM | WP40PM |
| K1–K2 | ...MH | WK15CM | ...MH | WK15CM | ...MH | WP20CM |
| K3 | ...MH | WK15CM | ...MH | WK15CM | ...MH | WP20CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | ...MM | WS30PM | ...MM | WU35PM | ...MM | WP40PM |
| S3 | ...MM | WS30PM | ...MM | WU35PM | ...MM | WP40PM |
| S4 | ...MM | WS30PM | ...MM | WU35PM | ...MM | WP40PM |
| H1 | ...MH | WP35CM | ...MR | WP25PM | – | – |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5 % | 10 % | 20 % | 30 % | 40 | ||||||||||||
| ..MM | 0,90 | 1,87 | 3,62 | 0,65 | 1,33 | 2,52 | 0,48 | 0,99 | 1,86 | 0,42 | 0,86 | 1,61 | 0,39 | 0,79 | 1,47 | ..MM |
| ..MH | 0,90 | 2,35 | 4,97 | 0,65 | 1,67 | 3,40 | 0,48 | 1,23 | 2,48 | 0,42 | 1,07 | 2,15 | 0,39 | 0,98 | 1,96 | ..MH |
| ..MR | 0,90 | 2,81 | 5,44 | 0,65 | 1,97 | 3,69 | 0,48 | 1,46 | 2,69 | 0,42 | 1,27 | 2,33 | 0,39 | 1,16 | 2,13 | ..MR |
| Light | General | Heavy |
| Insert Geometry | Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| ...MM | .035 | .073 | .143 | .026 | .052 | .099 | .019 | .039 | .073 | .017 | .034 | .063 | .015 | .031 | .058 | ...MM |
| ...MH | .035 | .093 | .196 | .026 | .066 | .134 | .019 | .049 | .098 | .017 | .042 | .085 | .015 | .039 | .077 | ...MH |
| ...MR | .035 | .111 | .214 | .026 | .078 | .145 | .019 | .057 | .106 | .017 | .050 | .092 | .015 | .046 | .084 | ...MR |
| Light | General | Heavy |
| Material Group | TN6525 | TN6540 | WK15CM | WP25PM | WP35CM | |||||||||||
| P | 1 | 410 | 320 | 280 | 360 | 280 | 240 | – | – | – | 395 | 340 | 325 | 455 | 395 | 370 |
| 2 | 320 | 250 | 215 | 250 | 190 | 170 | – | – | – | 330 | 290 | 240 | 280 | 255 | 230 | |
| 3 | 280 | 215 | 185 | 215 | 170 | 140 | – | – | – | 305 | 260 | 210 | 255 | 230 | 205 | |
| 4 | 235 | 170 | 145 | 180 | 130 | 110 | – | – | – | 270 | 220 | 180 | 190 | 175 | 160 | |
| 5 | 310 | 235 | 200 | 240 | 180 | 150 | – | – | – | 220 | 205 | 180 | 260 | 230 | 210 | |
| 6 | 205 | 160 | 130 | 160 | 120 | 100 | – | – | – | 200 | 150 | 120 | 160 | 135 | 110 | |
| M | 1 | 190 | 120 | 80 | 130 | 80 | 60 | – | – | – | 245 | 215 | 200 | 205 | 185 | 155 |
| 2 | 120 | 80 | 50 | 80 | 50 | 40 | – | – | – | 220 | 190 | 155 | 185 | 160 | 140 | |
| 3 | 125 | 80 | 55 | 85 | 50 | 40 | – | – | – | 170 | 145 | 115 | 145 | 130 | 115 | |
| K | 1 | 275 | 245 | 220 | 220 | 205 | 180 | 505 | 460 | 410 | 275 | 245 | 220 | 295 | 265 | 240 |
| 2 | 215 | 190 | 180 | 175 | 155 | 140 | 400 | 355 | 330 | 215 | 190 | 180 | 235 | 210 | 190 | |
| 3 | 180 | 160 | 145 | 155 | 145 | 125 | 335 | 300 | 275 | 180 | 160 | 145 | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | 50 | 35 | 30 | – | – | – | 50 | 40 | 30 | – | – | – |
| 2 | – | – | – | 25 | 20 | 10 | – | – | – | 50 | 40 | 30 | – | – | – | |
| 3 | – | – | – | 70 | 40 | 30 | – | – | – | 60 | 50 | 30 | – | – | – | |
| 4 | – | – | – | 60 | 30 | 25 | – | – | – | 85 | 60 | 40 | 66 | 50 | 33 | |
| H | 1 | – | – | – | – | – | – | – | – | – | 145 | 110 | 85 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| Material Group | WP40PM | WS30PM | WS40PM | WU35PM | |||||||||
| P | 1 | 355 | 310 | 295 | – | – | – | – | – | – | 260 | 230 | 215 |
| 2 | 300 | 260 | 215 | – | – | – | – | – | – | 220 | 190 | 160 | |
| 3 | 275 | 235 | 190 | – | – | – | – | – | – | 200 | 170 | 140 | |
| 4 | 245 | 205 | 160 | – | – | – | – | – | – | 180 | 150 | 120 | |
| 5 | 205 | 185 | 160 | – | – | – | 440 | 325 | 230 | 150 | 135 | 120 | |
| 6 | 180 | 140 | 110 | – | – | – | 375 | 260 | 165 | 130 | 100 | 80 | |
| M | 1 | 235 | 205 | 185 | 270 | 240 | 220 | 850 | 605 | 375 | 170 | 150 | 135 |
| 2 | 210 | 180 | 150 | 245 | 215 | 175 | 755 | 560 | 345 | 155 | 130 | 110 | |
| 3 | 155 | 140 | 110 | 185 | 160 | 125 | 625 | 440 | 280 | 115 | 100 | 80 | |
| K | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | 50 | 40 | 35 | 55 | 50 | 35 | 200 | 145 | 90 | 35 | 30 | 25 |
| 2 | 50 | 40 | 35 | 55 | 50 | 35 | 180 | 130 | 85 | 35 | 30 | 25 | |
| 3 | 60 | 50 | 35 | 65 | 55 | 35 | 210 | 150 | 95 | 45 | 35 | 25 | |
| 4 | 80 | 60 | 40 | 100 | 70 | 50 | 295 | 215 | 135 | 60 | 45 | 30 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| Material Group | TN6525 | TN6540 | WK15CM | WP25PM | WP35CM | WP40PM | WS30PM | WS40PM | WU35PM | |||||||||||||||||||
| P | 1 | 1340 | 1045 | 925 | 1180 | 925 | 785 | – | – | – | 1295 | 1120 | 1060 | 1790 | 1555 | 1460 | 1165 | 1025 | 965 | – | – | – | – | – | – | 850 | 750 | 705 |
| 2 | 1045 | 830 | 710 | 830 | 630 | 550 | – | – | – | 1080 | 940 | 785 | 1105 | 1000 | 905 | 985 | 845 | 710 | – | – | – | – | – | – | 720 | 620 | 520 | |
| 3 | 925 | 710 | 610 | 710 | 550 | 450 | – | – | – | 1000 | 845 | 690 | 1000 | 905 | 805 | 905 | 770 | 630 | – | – | – | – | – | – | 655 | 555 | 455 | |
| 4 | 770 | 550 | 475 | 590 | 430 | 355 | – | – | – | 890 | 725 | 590 | 750 | 690 | 630 | 805 | 670 | 535 | – | – | – | – | – | – | 590 | 490 | 390 | |
| 5 | 1025 | 770 | 650 | 785 | 590 | 490 | – | – | – | 725 | 670 | 590 | 1025 | 905 | 830 | 670 | 610 | 535 | – | – | – | 560 | 475 | 395 | 490 | 440 | 390 | |
| 6 | 670 | 535 | 430 | 535 | 395 | 335 | – | – | – | 650 | 490 | 395 | 630 | 535 | 430 | 590 | 450 | 355 | – | – | – | 490 | 360 | 260 | 425 | 325 | 260 | |
| M | 1 | 630 | 395 | 260 | 430 | 260 | 200 | – | – | – | 805 | 710 | 650 | 805 | 725 | 610 | 770 | 670 | 610 | 890 | 785 | 725 | 690 | 560 | 460 | 555 | 490 | 440 |
| 2 | 395 | 260 | 155 | 260 | 155 | 140 | – | – | – | 725 | 630 | 510 | 725 | 630 | 550 | 690 | 590 | 490 | 805 | 710 | 570 | 590 | 475 | 395 | 505 | 425 | 360 | |
| 3 | 415 | 260 | 180 | 275 | 155 | 140 | – | – | – | 550 | 475 | 370 | 570 | 510 | 450 | 510 | 450 | 355 | 610 | 535 | 415 | 475 | 360 | 280 | 375 | 325 | 260 | |
| K | 1 | 905 | 805 | 725 | 725 | 670 | 590 | 1655 | 1520 | 1340 | 905 | 805 | 725 | 1165 | 1045 | 940 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 710 | 630 | 590 | 570 | 510 | 450 | 1320 | 1165 | 1080 | 710 | 630 | 590 | 925 | 830 | 750 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 590 | 535 | 475 | 510 | 475 | 415 | 1105 | 985 | 905 | 590 | 535 | 475 | 770 | 690 | 630 | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | 155 | 120 | 95 | – | – | – | 155 | 140 | 95 | – | – | – | 155 | 140 | 120 | 180 | 155 | 120 | 130 | 115 | 80 | 110 | 95 | 80 |
| 2 | – | – | – | 80 | 60 | 40 | – | – | – | 155 | 140 | 95 | – | – | – | 155 | 140 | 120 | 180 | 155 | 120 | 130 | 115 | 80 | 110 | 95 | 80 | |
| 3 | – | – | – | 235 | 140 | 95 | – | – | – | 200 | 155 | 95 | – | – | – | 200 | 155 | 120 | 215 | 180 | 120 | 165 | 130 | 80 | 145 | 110 | 80 | |
| 4 | – | – | – | 200 | 95 | 80 | – | – | – | 275 | 200 | 140 | 260 | 200 | 130 | 260 | 200 | 140 | 335 | 235 | 155 | 195 | 165 | 100 | 195 | 145 | 95 | |
| H | 1 | – | – | – | – | – | – | – | – | – | 475 | 355 | 275 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
